OKASOLAR S

Outstanding Sun Protection for Roof Glazing

OKASOLAR S is a daylight system especially developed for overhead glazing and unites effective direction-selective sun protection with the use of daylight. The shading system integrated in the cavity creates a comfortable atmosphere in the interior: Along with good transparency it guarantees an even and glare-free illumination with daylight at any time of day or season. Moreover, OKASOLAR S reduces the cooling load and costs for artificial illumination and optimizes the energy balance of a building.

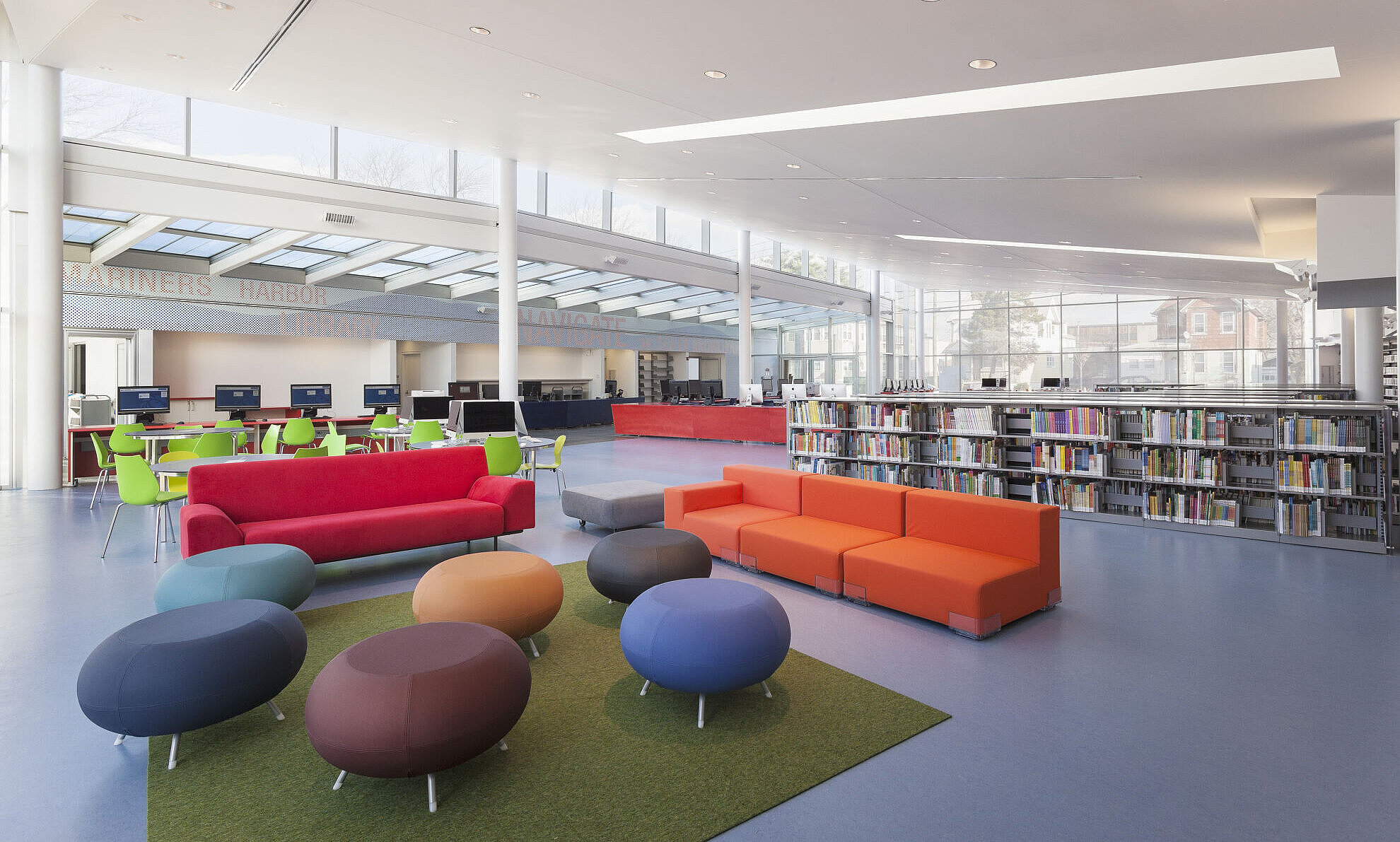

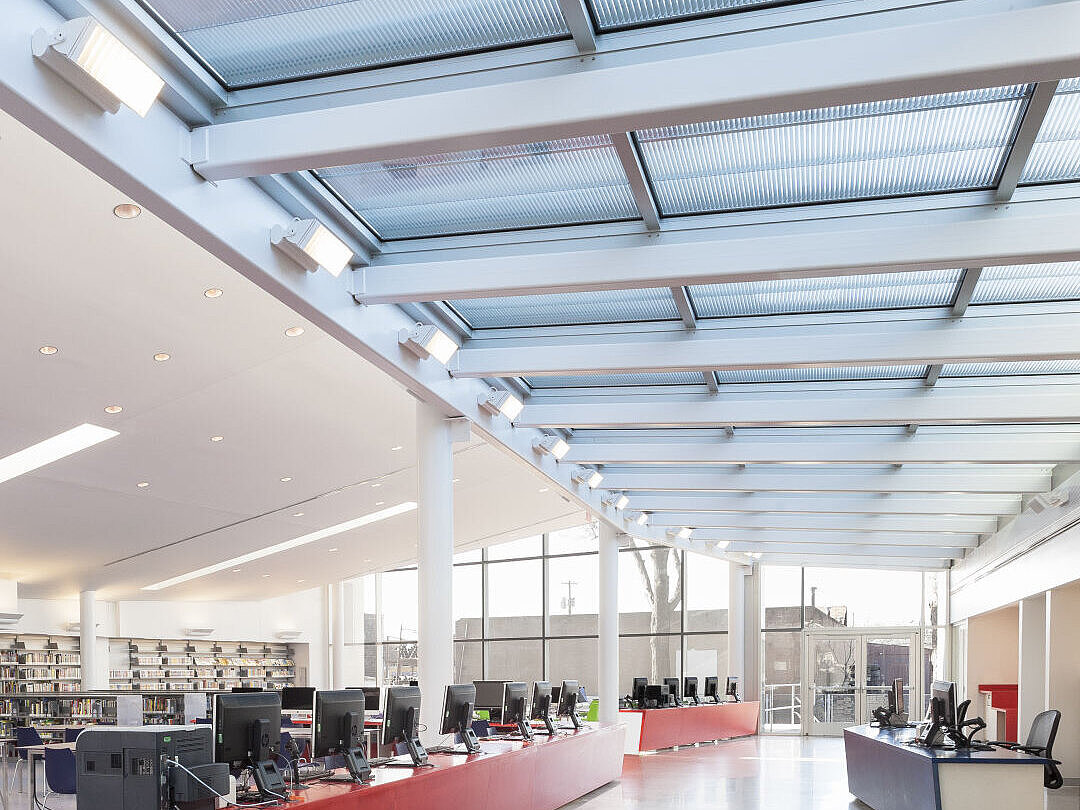

© A*PT ARCHITECTURE, atelier pagnamenta torriani | Photographer: Naho Kubota — Mariners Harbor Library - OKASOLAR S

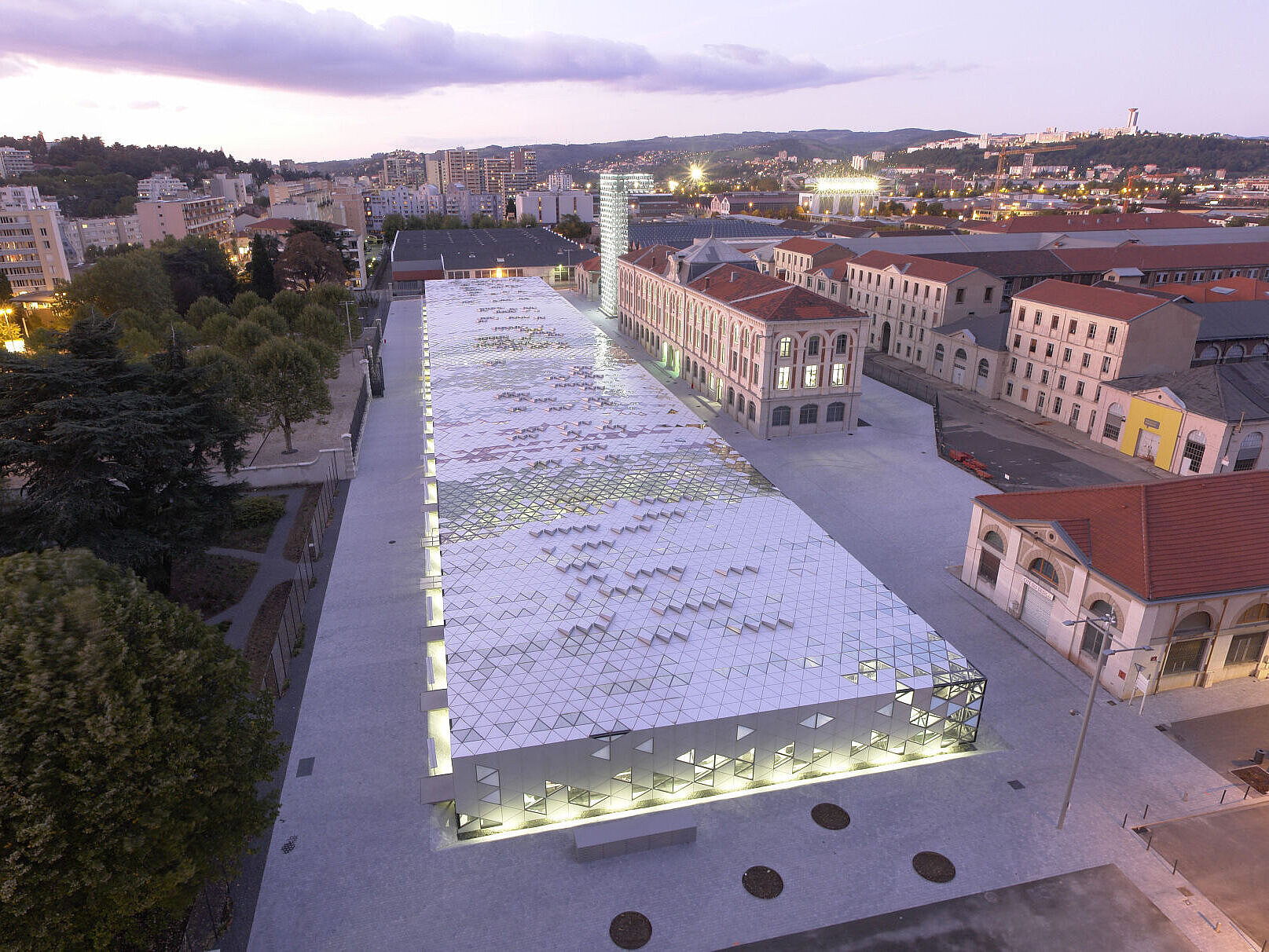

© LIN Architects Urbanists, photographer: Christian Richters, Jan-Oliver Kunze — Cité du Design - OKASOLAR S

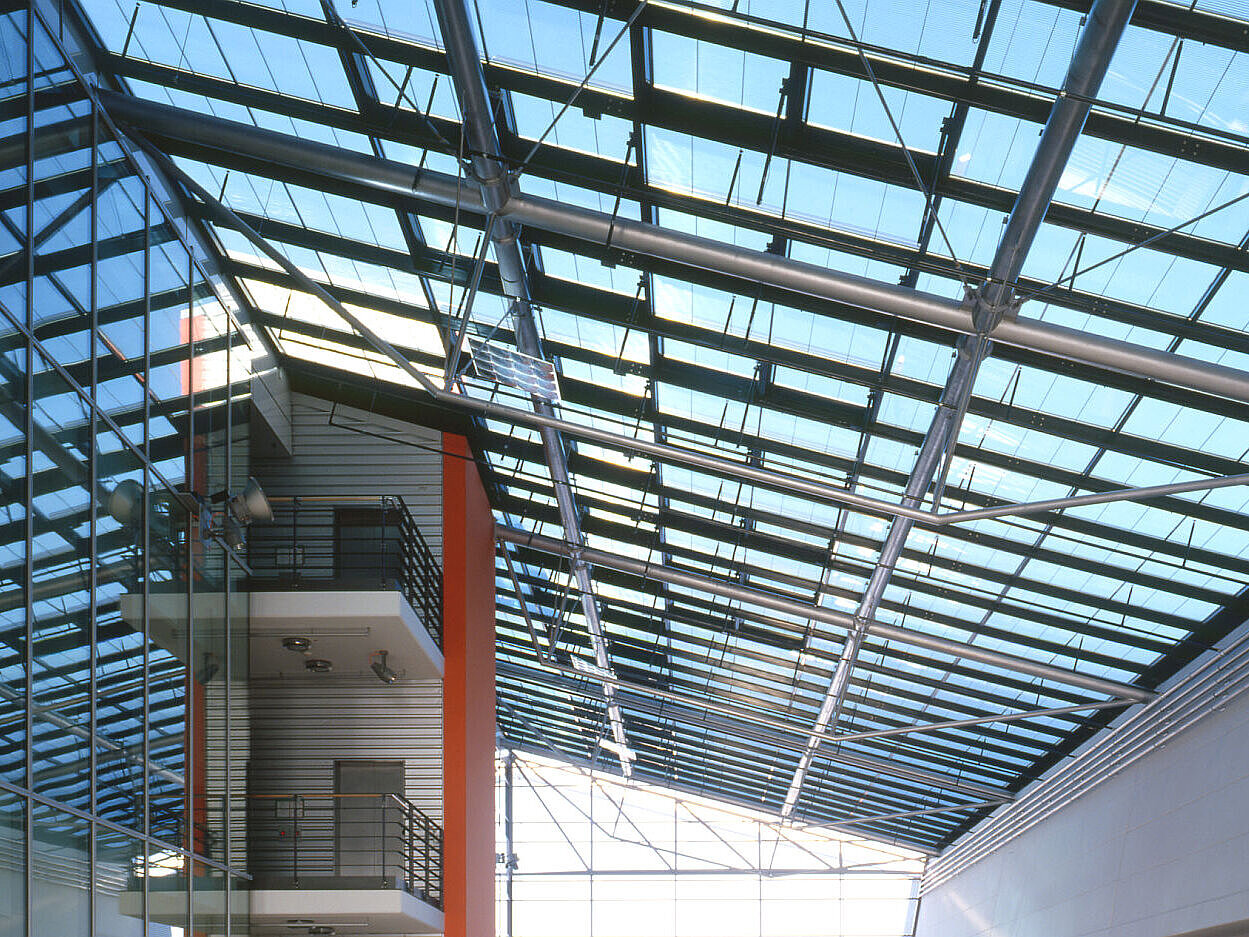

© Ali Moshiri — Elektronic Center Audi AG - OKASOLAR S

© Christian Schwab — Clinic Miltenberg-Erlenbach GmbH - OKASOLAR S

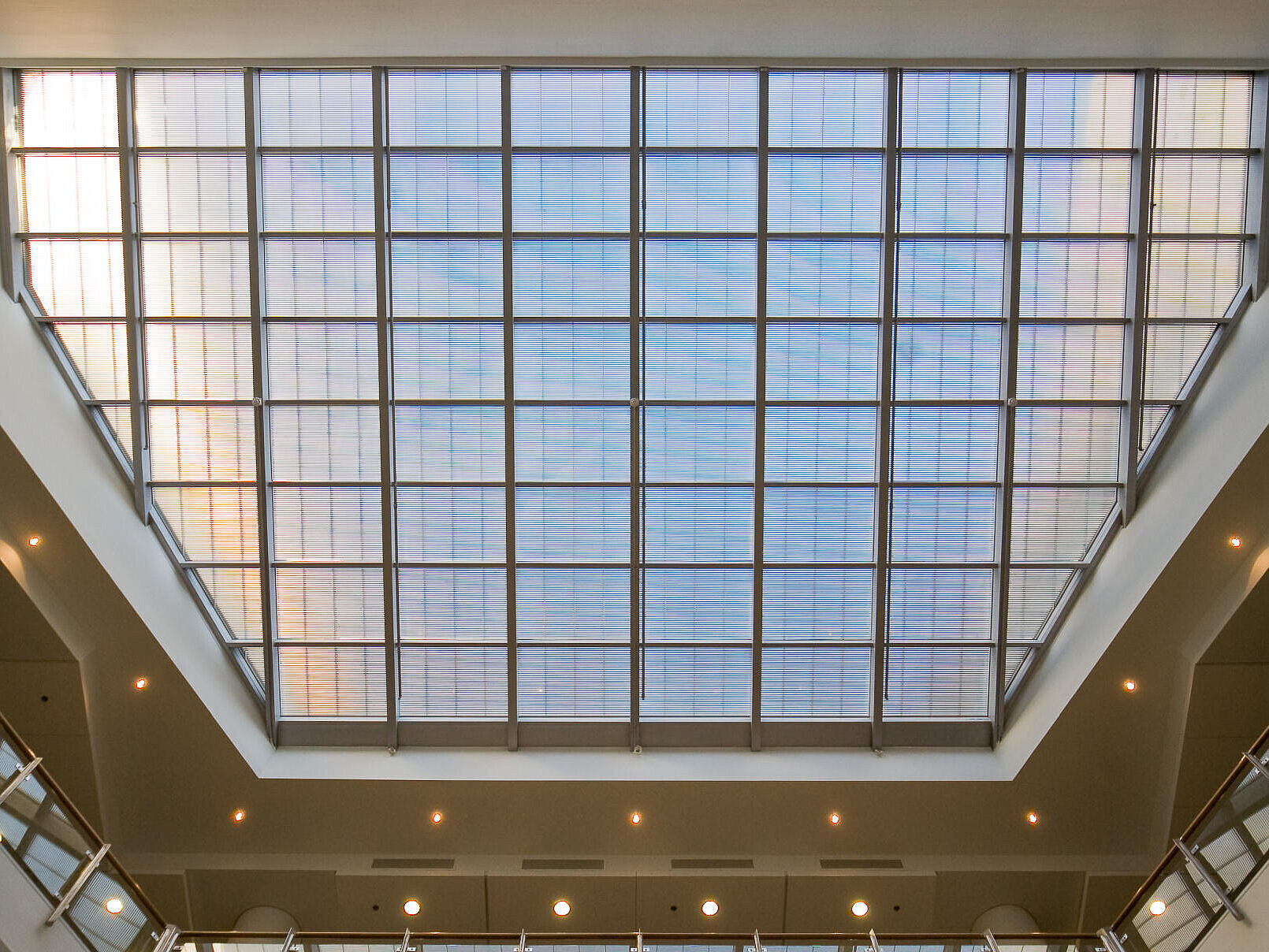

© Vangelis Paravas — Michael Cacoyannis Foundation - OKASOLAR S

High Functionality

Effective, direction-selective sun protection
Daylight direction towards building interior
Light transmission precisely and specifically adjustable to the project
Fire protection according to requirements
Variety of special formats possible
Visibility as bird protection function

Sustainability

Daylight entry reduces need for artificial light
Reduction of cooling load in summer, solar gains in winter time
Fully recyclable
Louvres fully and durably protected inside the cavity
No additional cost for maintenance, repair or cleaning

User Comfort

Comfortable daylight atmosphere in the entire interior
Outstanding vision to the outside
Effective privacy protection

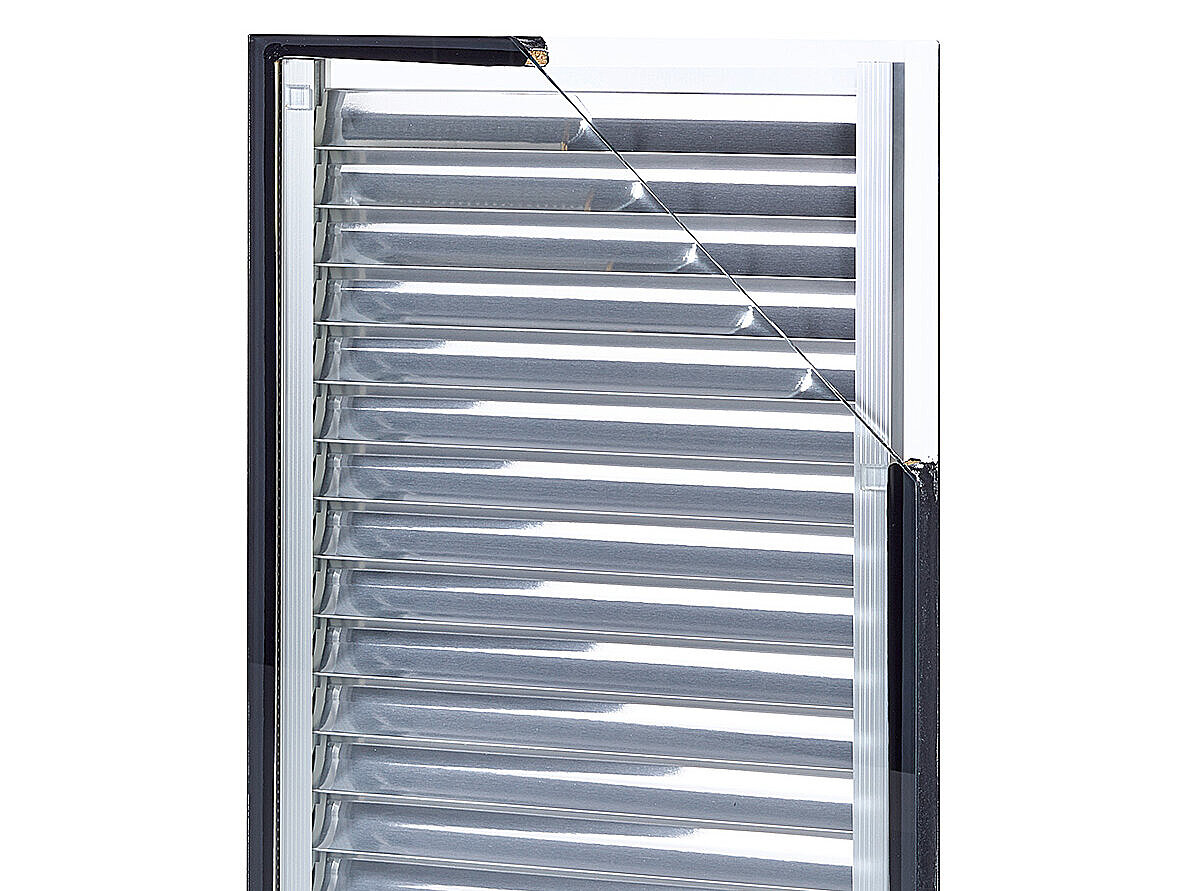

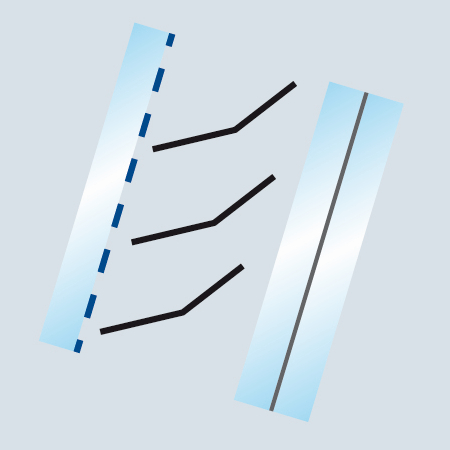

OKASOLAR S – double glazing build-up — Double glazing build-up

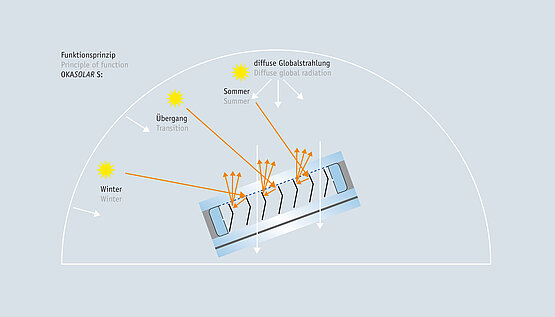

OKASOLAR S – double glazing build-up – principle of function — Double glazing build-up - principle of function

OKASOLAR S – double glazing build-up – Transparency — Double glazing build-up - Transparency

Maximum dimensions: 3,000 mm x 4,500 mm, larger sizes available upon request
Maximum dimensions: 7 m²
Partial transparency: max. 80 % (depending on the line of sight)
Louvre distance: 24.7 mm
All technical value, such as light transmission, TSET and U_g-values can be adjusted matching requirements by varying other constructions and glass types.

OKASOLAR S	Total Thickness	Functional coating	U_g-value [W/(m²K)]			TSET	Light Transmission
Standard double glazing build-up	mm	Type	Krypton	Argon	Air	(%) min.¹ - max.²	(%) min.¹ - max.²
	24	low-e	1,1	1,3	1,9	13 - 45	1 - 47
	24	solar	1,1	1,3	1,9	9 - 31	1 - 41

¹ for angle of incidence γ = 60°
² for angle of incidence γ = -30°

OKASOLAR S	Total Thickness	Functional coating	U_g-value [W/(m²K)]			TSET	Light Transmission
Standard triple glazing build-up	mm	Type	Krypton	Argon	Air	(%) min.¹ - max.²	(%) min.¹ - max.²
	24+10	low-e	0,6	0,8	1,1	14 - 40	1 - 42
	24+10	solar	0,6	0,8	1,1	8 - 29	1 - 37
