OKACELL

Building-integrated photovoltaic

OKACELL makes building-integrated photovoltaic available for architectural applications. OKACELL offers the greatest possible variety of designs with different cell types, cell colours and customized alignment. A wide range of module shapes is possible in addition to rectangular panels. OKACELL is available as monolithic glazing and insulated glazing for facade and roof.

  • Individual design options
  • High efficiency up to 180 Wp/m² depending on the cell type and coverage density
  • Extensive support in planning
  • Combination with OKALUX light diffusing insulated glass
  • Combination with individually printed front glasses
  • Visibility for birds

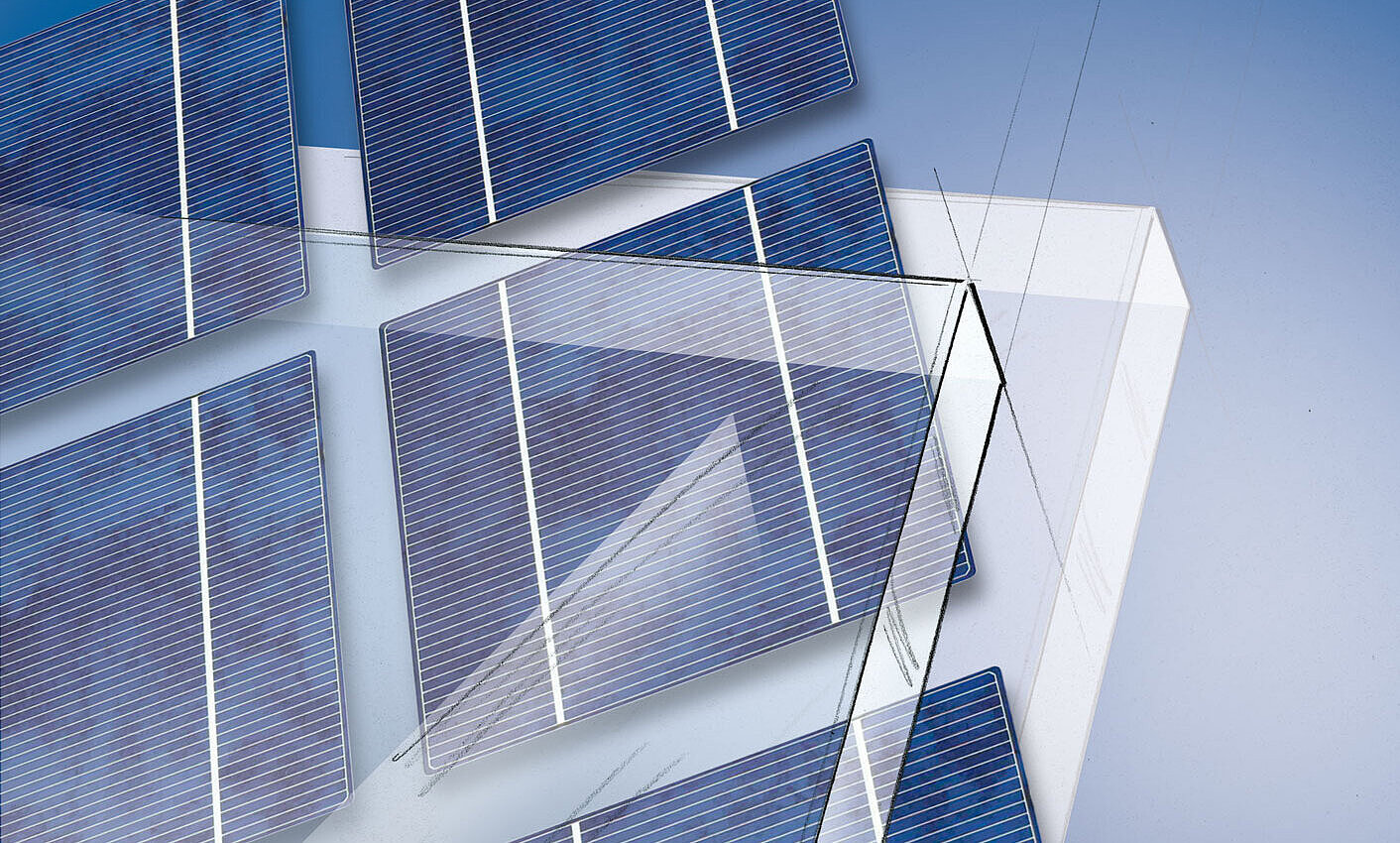

The cells are embedded in a laminated glass made from tempered/toughened glass or heat-strengthened glass (low-iron glass). PVB or EVA foil is used as the intermediate layer.

max glass dimensions up to 2200 mm x 3600 mm
Minimum size with two cells alongside each other approx. 400 mm
Individual cell size 158,75 mm x 158,75 mm
Minimum cell spacing ≥ 2,5 mm
Distance from cell to edge seal ≥ 20 mm
Lateral projection connector approx. 10 mm (cable diameter)

Electrical data
Efficiency approx. 22.2 %
Power 180 Wp/m² at 100 % coverage density


Due to the rapid technical progress in the development of new cell types and sizes, it may be that a specific type of cell is no longer available at a later date. The inherent colour and the brightness of crystalline cells is not a defined property. Therefore, colour differences may occur within a module and between different modules.

Further technical information regarding the various cell types and their specific key data can be requested directly from OKALUX.

Technical values of standard types

U-value 1.0 to 1.4 W/(m2K) as insulation glazing and up to
0.8 W/(m2K) in combination with OKALUX K
TSET ≥ 12 %
Tv 10 % to 80 %



Legend and related sizes

  Unit Standard Name
U W/(m2K) DIN EN 673 Heat transfer coefficient, Ug = U
    DIN EN 674
TSET % DIN EN 410 Total energy transmittance
Tv % DIN EN 410 Light permeability (direct/hemispheric)



The specified values are approximate. They are based upon measurements by recognised test institutes and the derived calculations.
