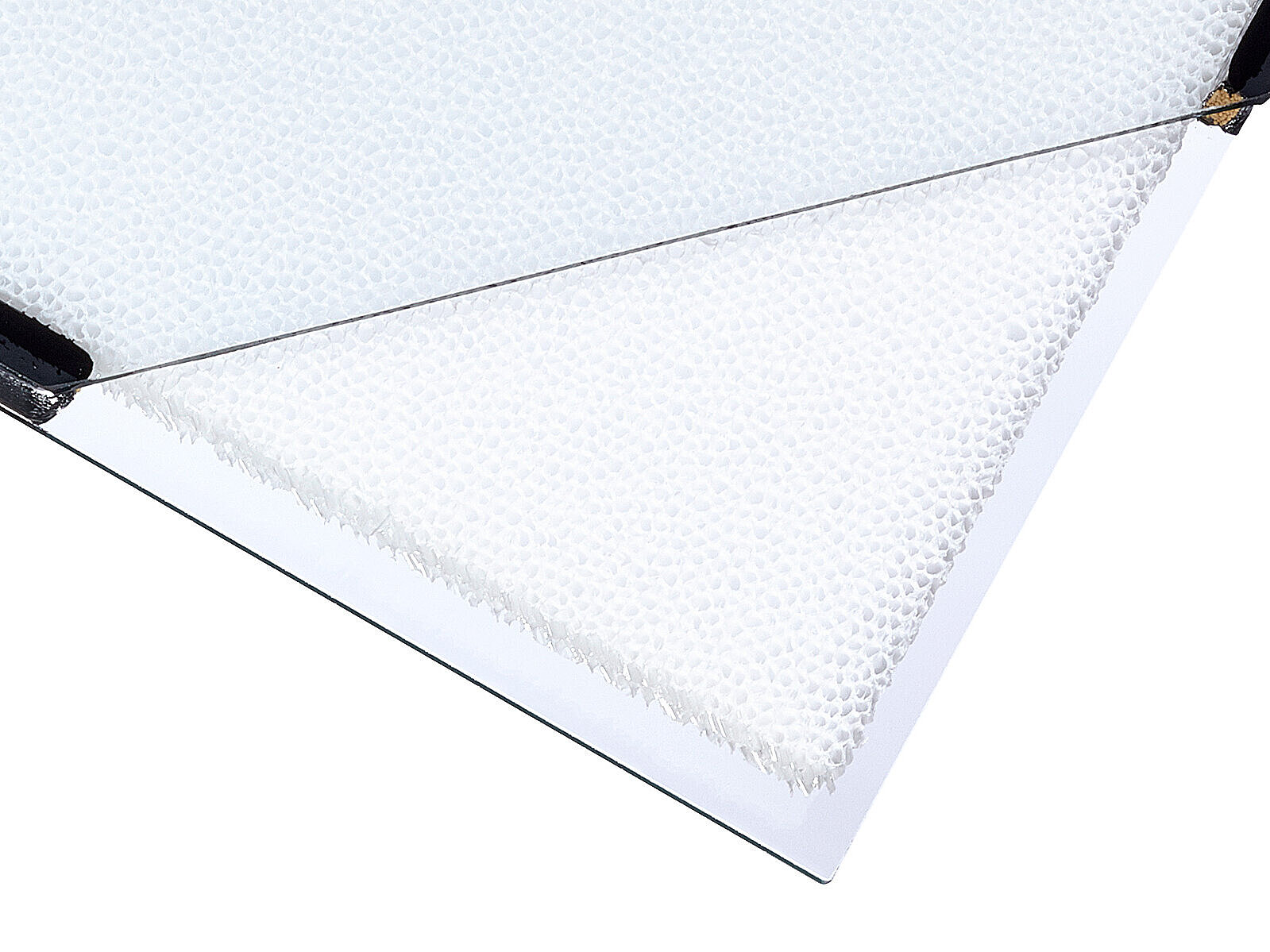

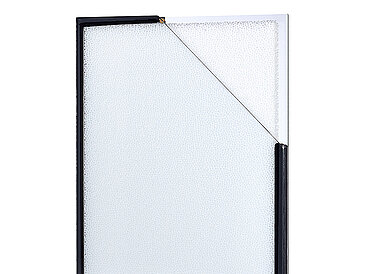

KAPILUX WS

Capillary System for Roof Glazing

KAPILUX WS light-diffusing insulating glass offers numerous advantages: The transparent capillary slabs in the cavity allow for an even and shadow-free illumination with daylight deep into the room. The sun and glare-protection are very good, and the heat insulation is improved by the capillary tubes. The transmission values can be individually adjusted to the requirements.

KAPILUX WS was developed especially for roof glazing. The capillary axis inserted diagonally to the glass prevents the sun from entering the room when mounted accordingly. In combination with the white coloring of the capillaries, high requirements on sun and glare-protection can be met.

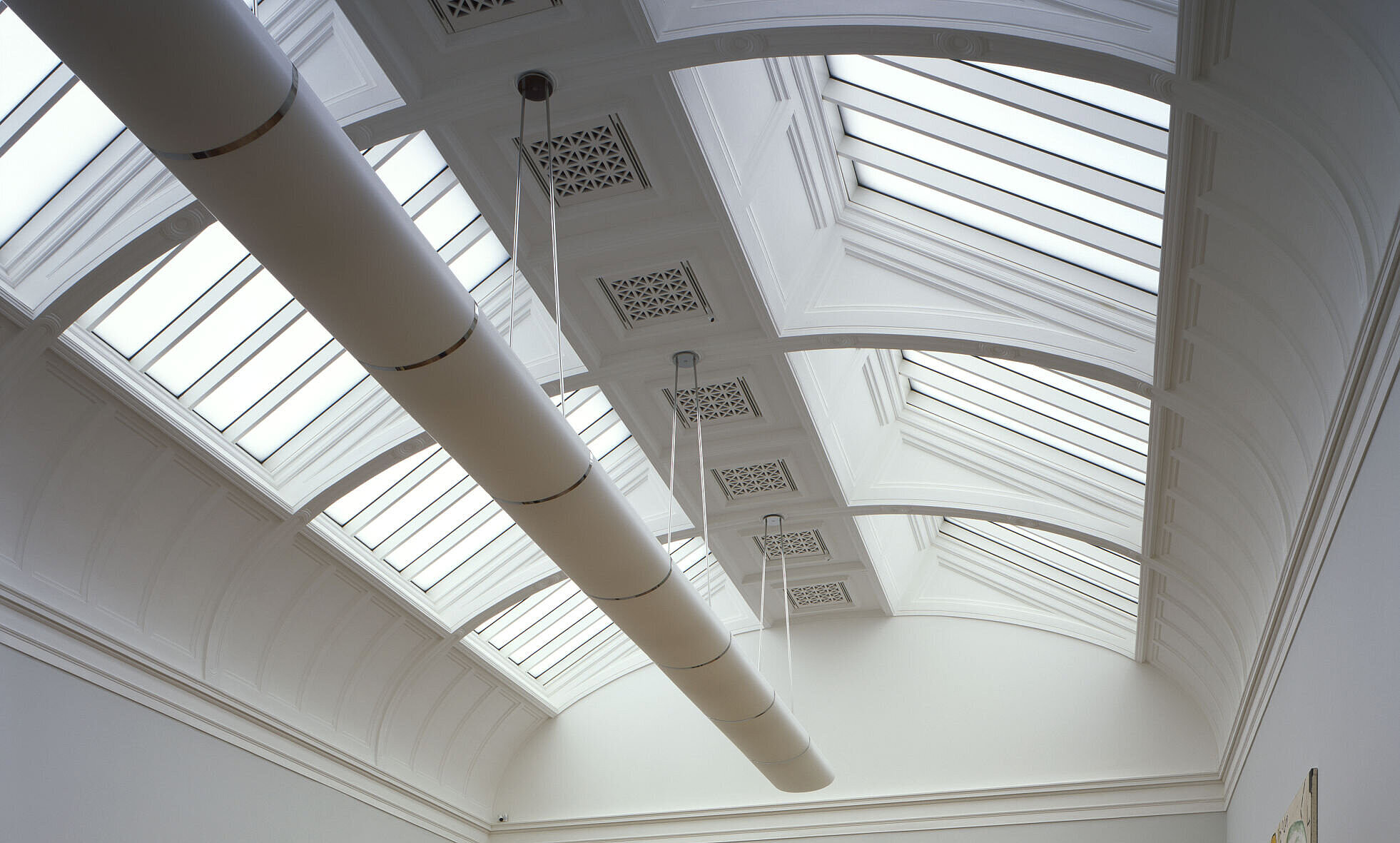

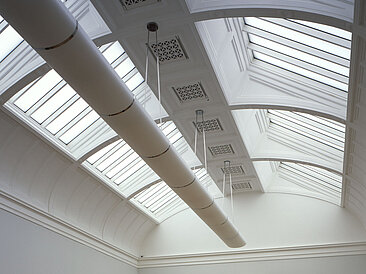

© Helene Binet — Tate Gallery of Modern Art - KAPILUX WS

High Functionality

Optimal, even illumination of the room, without hard shadows
Effective sun and glare protection
High light transmission, light entry can be adjusted individually
High colour rendering
Good heat and sound insulation
Protection from UV rays
Bird-friendly solution
Fire protection according to requirements

Sustainability

Daylight entry reduces amount of artificial light required
Reduction of cooling loads in summer
Fully recyclable
Long-Lasting, maintenance-free and easy to clean

Attractive Aesthetics

Attractive appearance
Vivid surface with depth effect
Capillary inserts can be printed with colour and décor

User Comfort

Comfortable daylight atmosphere
Effective privacy protection
Reduced amount of solar input into the building
Partial Vision

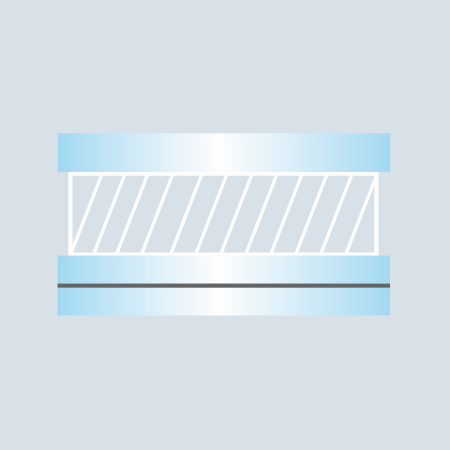

KAPILUX WS – double glazing build-up – horizontal glazing — double glazing build-up – horizontal glazing

KAPILUX Capillary System - Light Diffusion — Capillary System - Light Diffusion

Maximum dimensions: 2,400 mm x 4,400 mm, larger sizes available upon request
All technical values, such as light transmission, TSET and Ug-values can be varied by using other constructions and glass types.
