OKATECH wire mesh

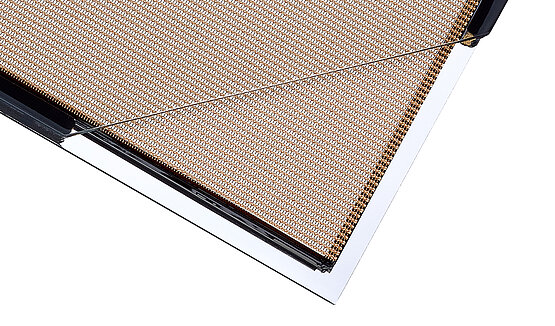

Insulating glass with wire mesh insert

Glass facades with wire mesh inserts always set visual accents. The metal fabric in different types of materials and thicknesses are not only attractive elements of design but also fulfill high requirements on sun and glare-protection and allow views to the outside.

During the day, they give the building shell a special glow and the façade has a metallic shimmer in the sunlight. At night, when artificial light is used, they allow deep views into the interior. In addition to façades and parapets, OKATECH wire mesh is also suited for sophisticated interior design applications.

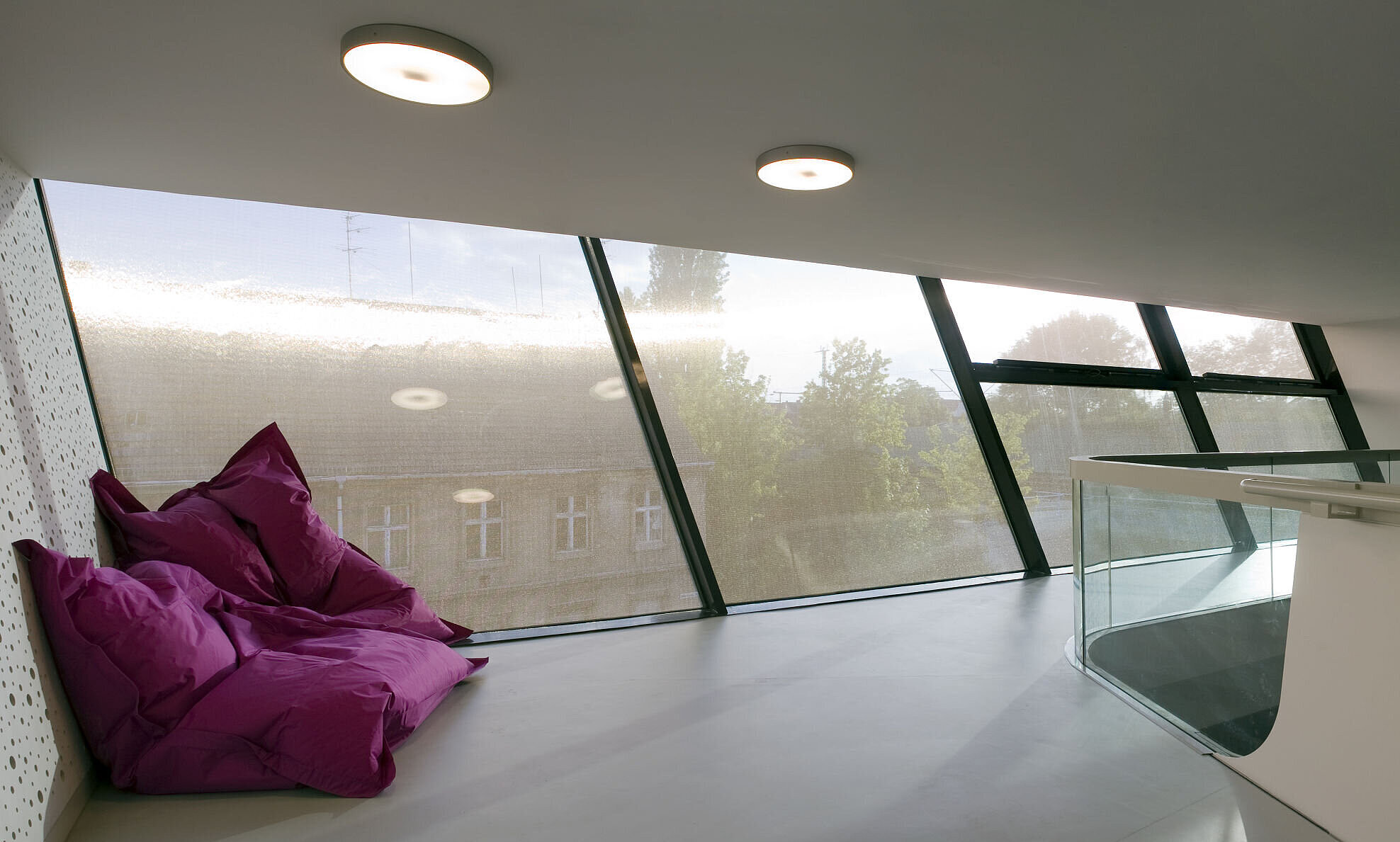

© Andreas Meichsner — Library at the Railway Station - OKATECH wire mesh mandarin

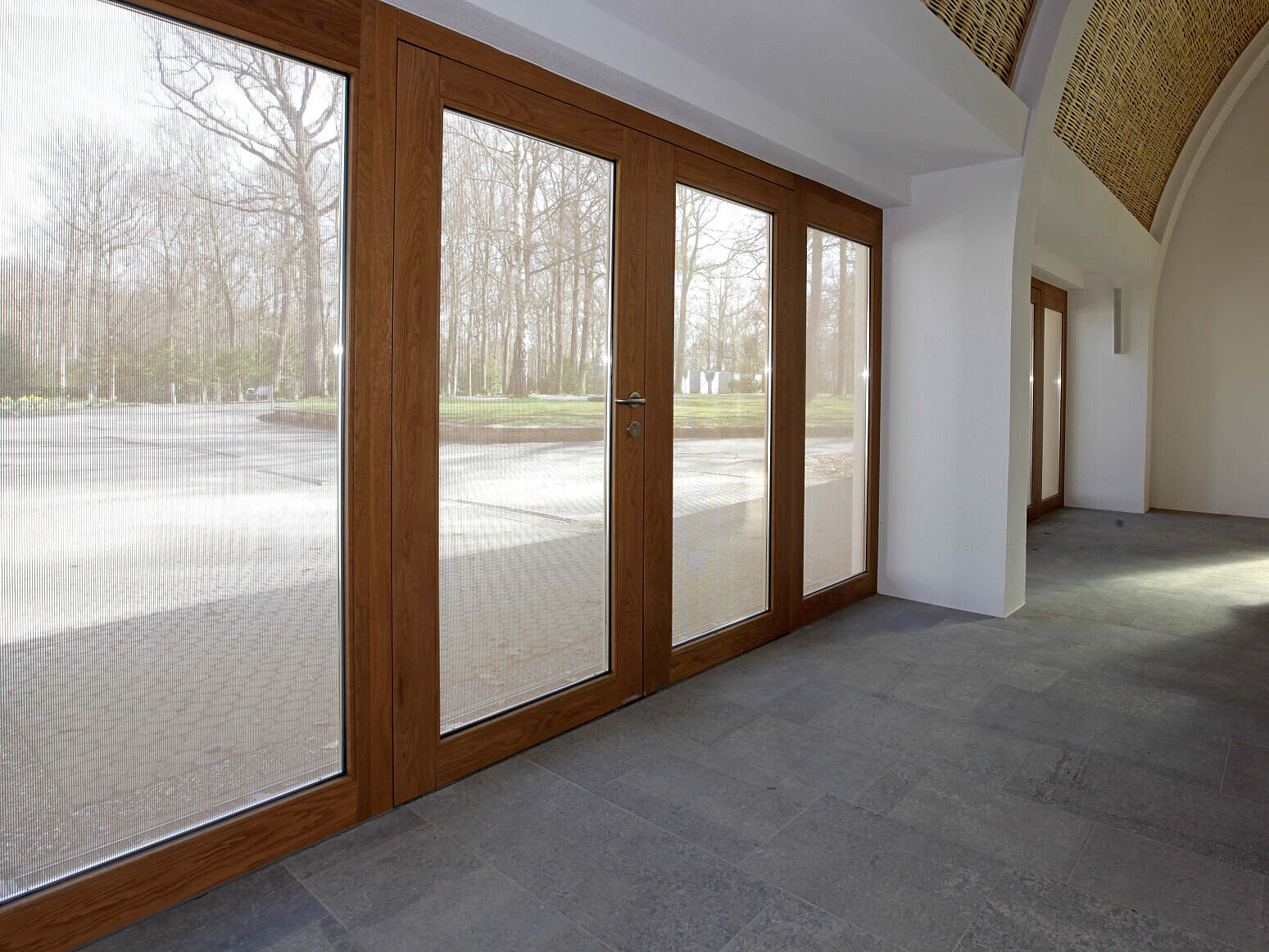

© Christian Schwab — Cemetry Aalen - OKATECH wire mesh mandarin

Variety of Design and Attractive Aesthetics

The gleaming metal inlays give the facades a unique character and a special brilliance
Different properties oft he building shell
Combination of various metals and coatings
Variable geometry and dimension
Sophisticated design solutions
Embedding in a Mulfifunctional Module (MFM) is possible
The energy balance of the building can be significantly improved by combining OKALUX@ HPI

Functionality

Angle-selective sun and glare protection
Reduced solar entry into the building
Visibility as bird protection function
Fire protection according to requirements

Sustainability

Fully recyclable
Long-lasting, maintanance-free and easy to clean

User Comfort

Successful combination of privacy and partial view
Comfortable interior atmosphere through evenly diffused daylight

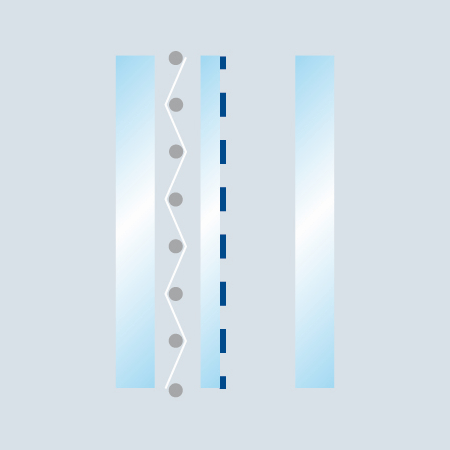

OKATECH Wire mesh – double glazing build-up – vertical glazing — Double glazing build-up – vertical glazing

Maximum dimensions: 2,000 mm x 4,000 mm (depends on the type of wire mesh), larger sizes available upon request
Maximum dimensions: 7 m²

OKATECH Wire Mesh		Functional coating	U_g-value [W/(m²K)]			TSET	Light Transmission
Double glazing		Type	Krypton	Argon	Air	(%) min.¹ - max.²	(%) min.¹ - max.²

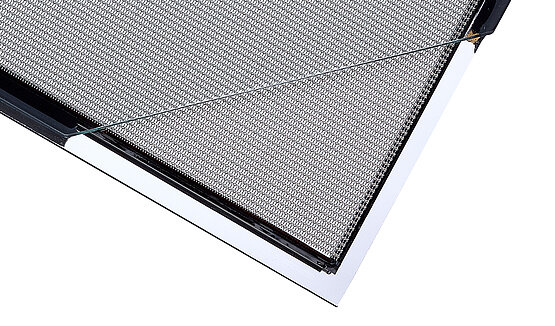

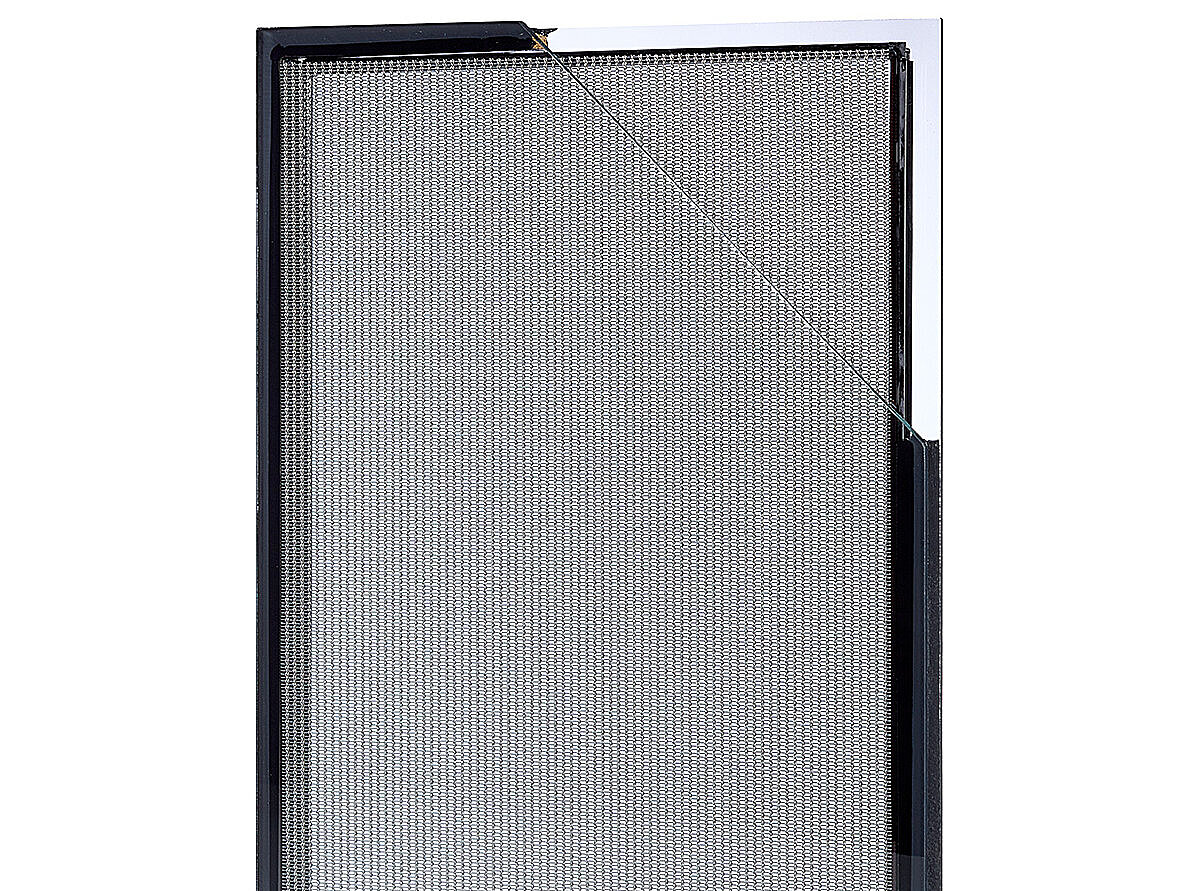

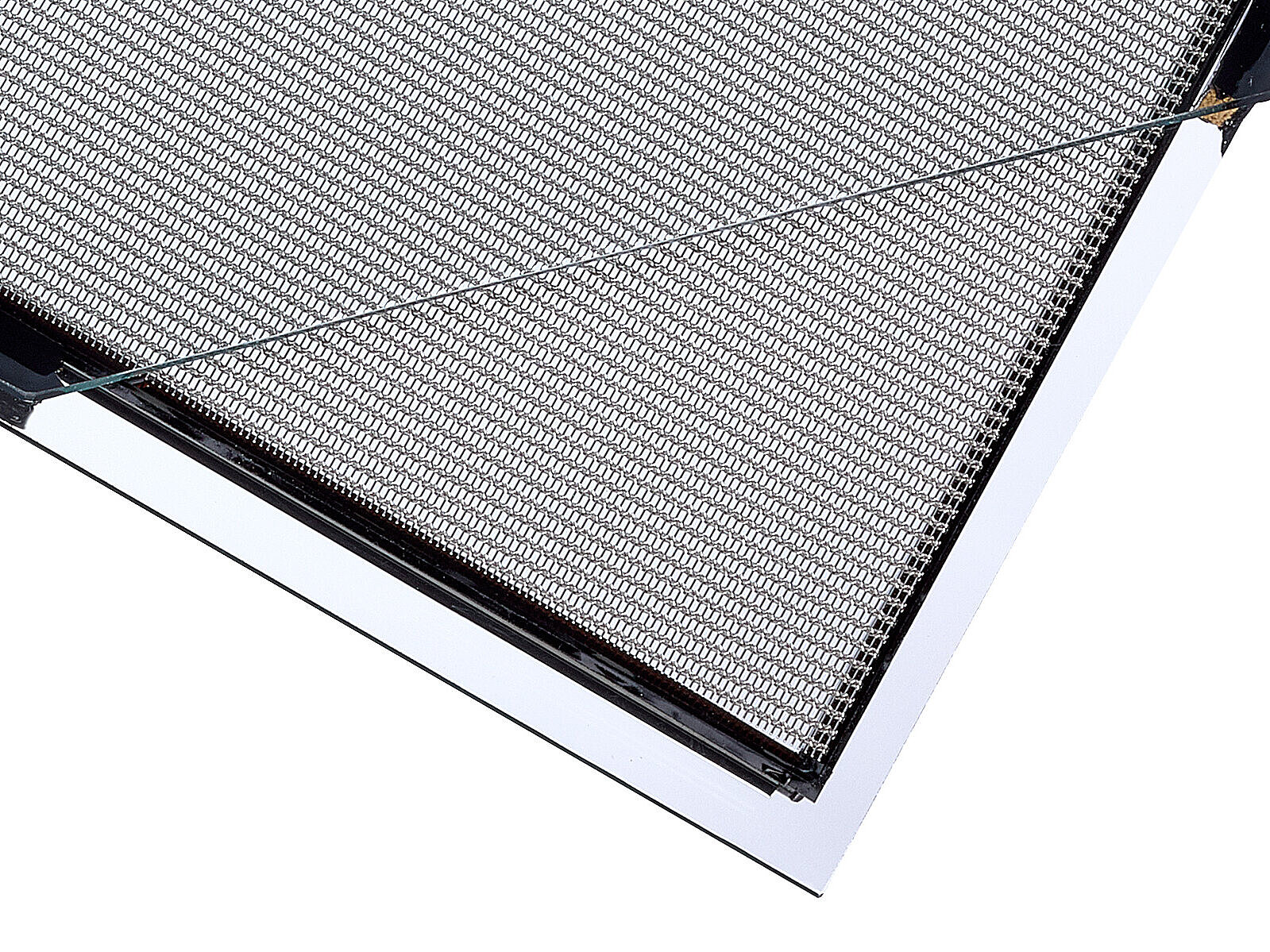

	Kiwi	low-e	1,0	1,2	1,5	22 - 27	22 - 30
	Kiwi	solar	0,9	1,1	1,4	14 - 20	17 - 26

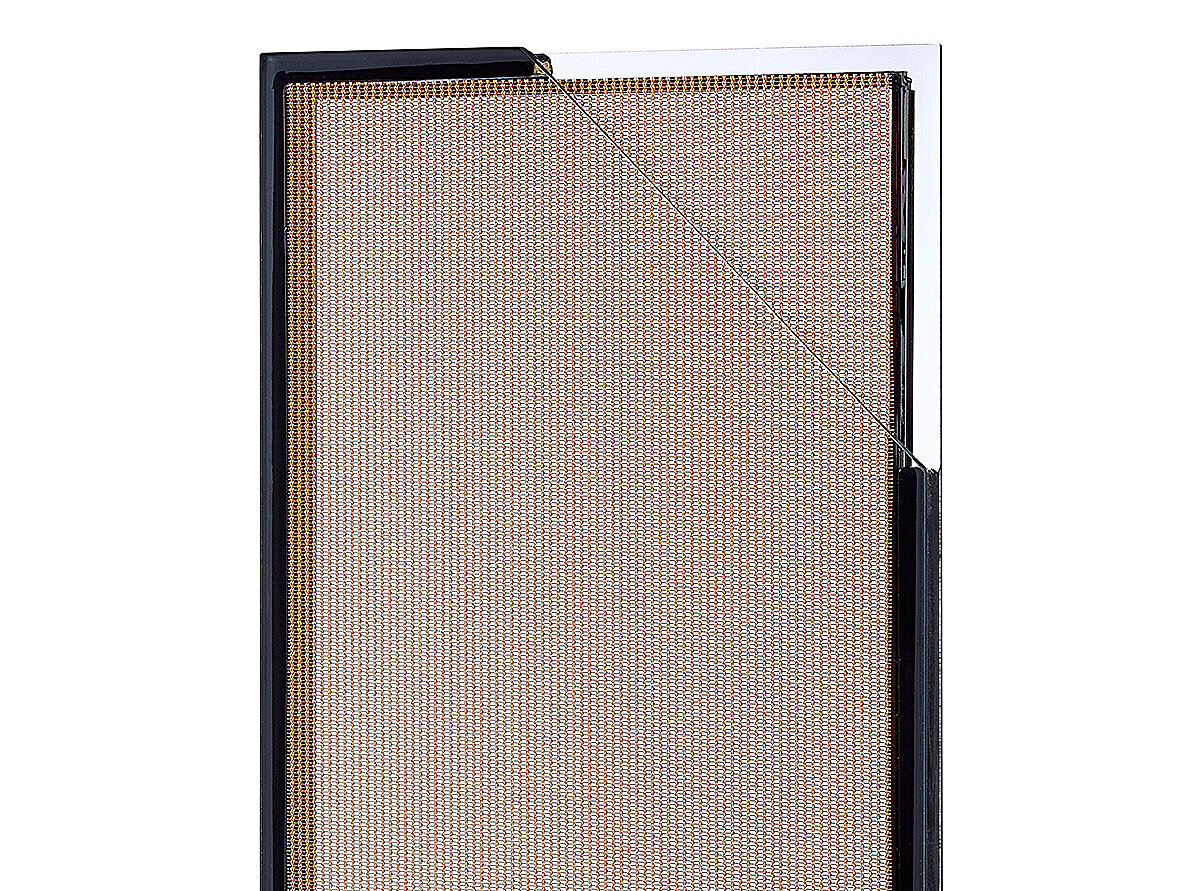

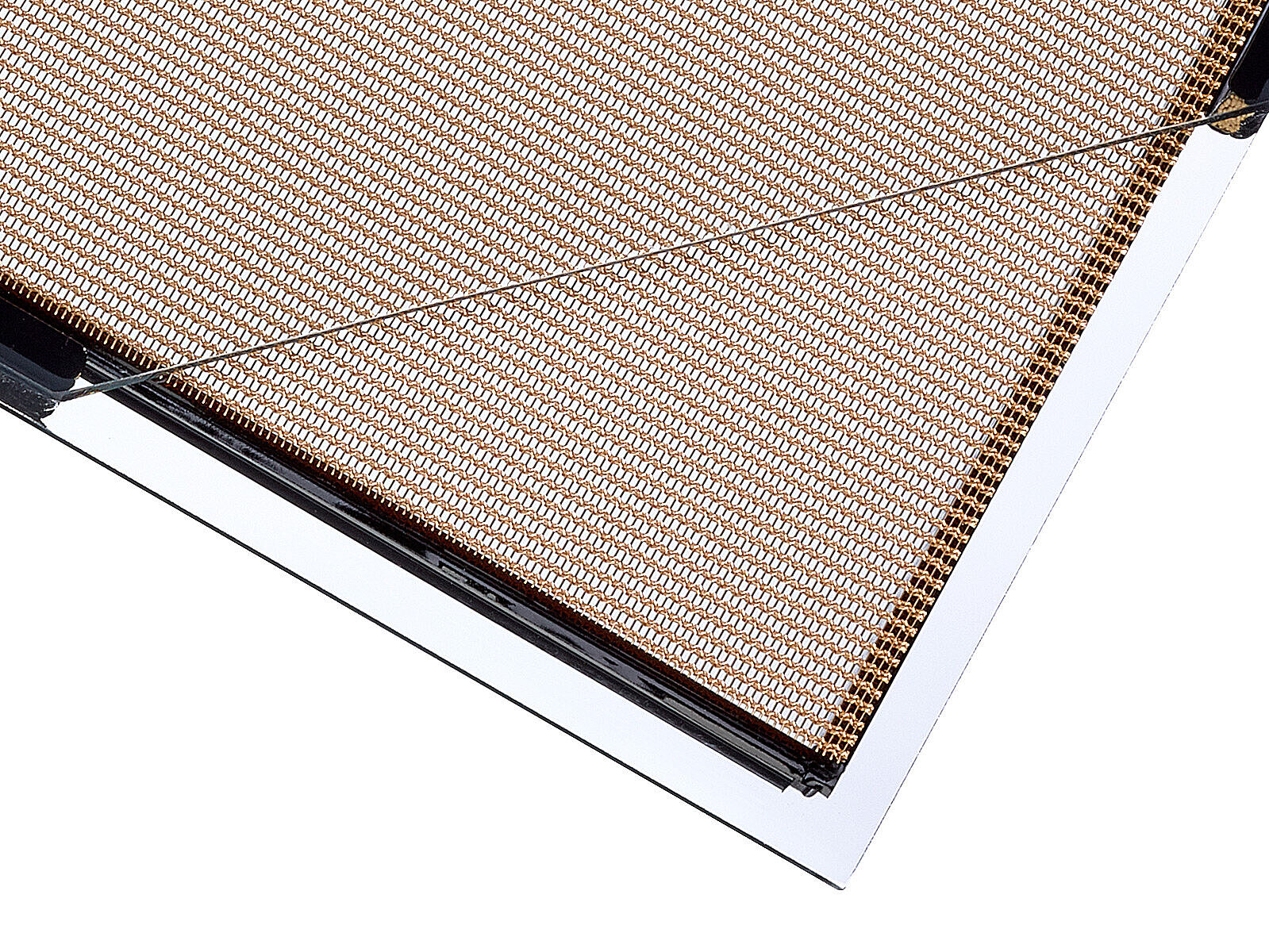

	Mandarin	low-e	1,0	1,2	1,5	22 - 27	22 - 30
	Mandarin	solar	0,9	1,1	1,4	14 - 20	17 - 26
