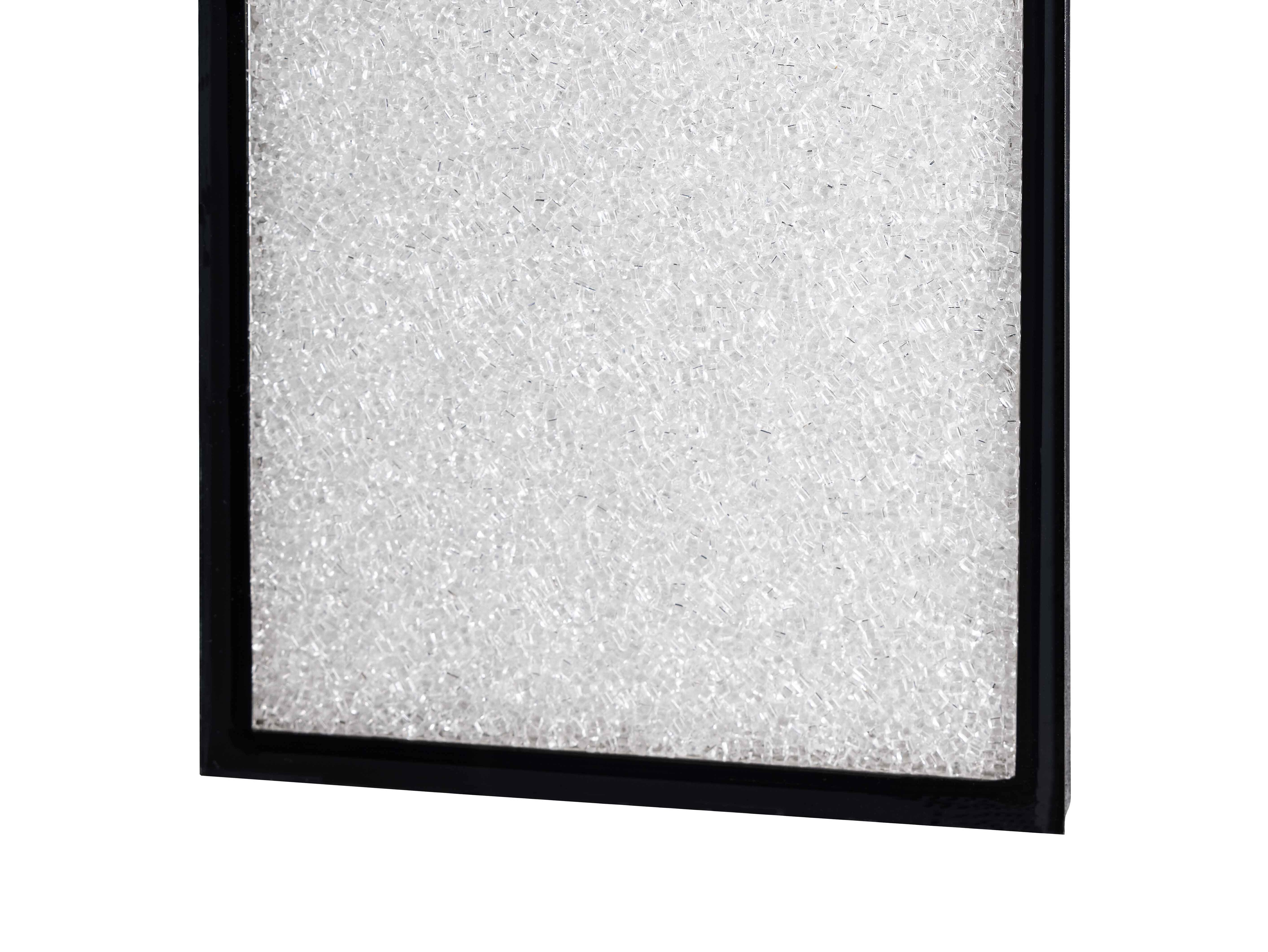

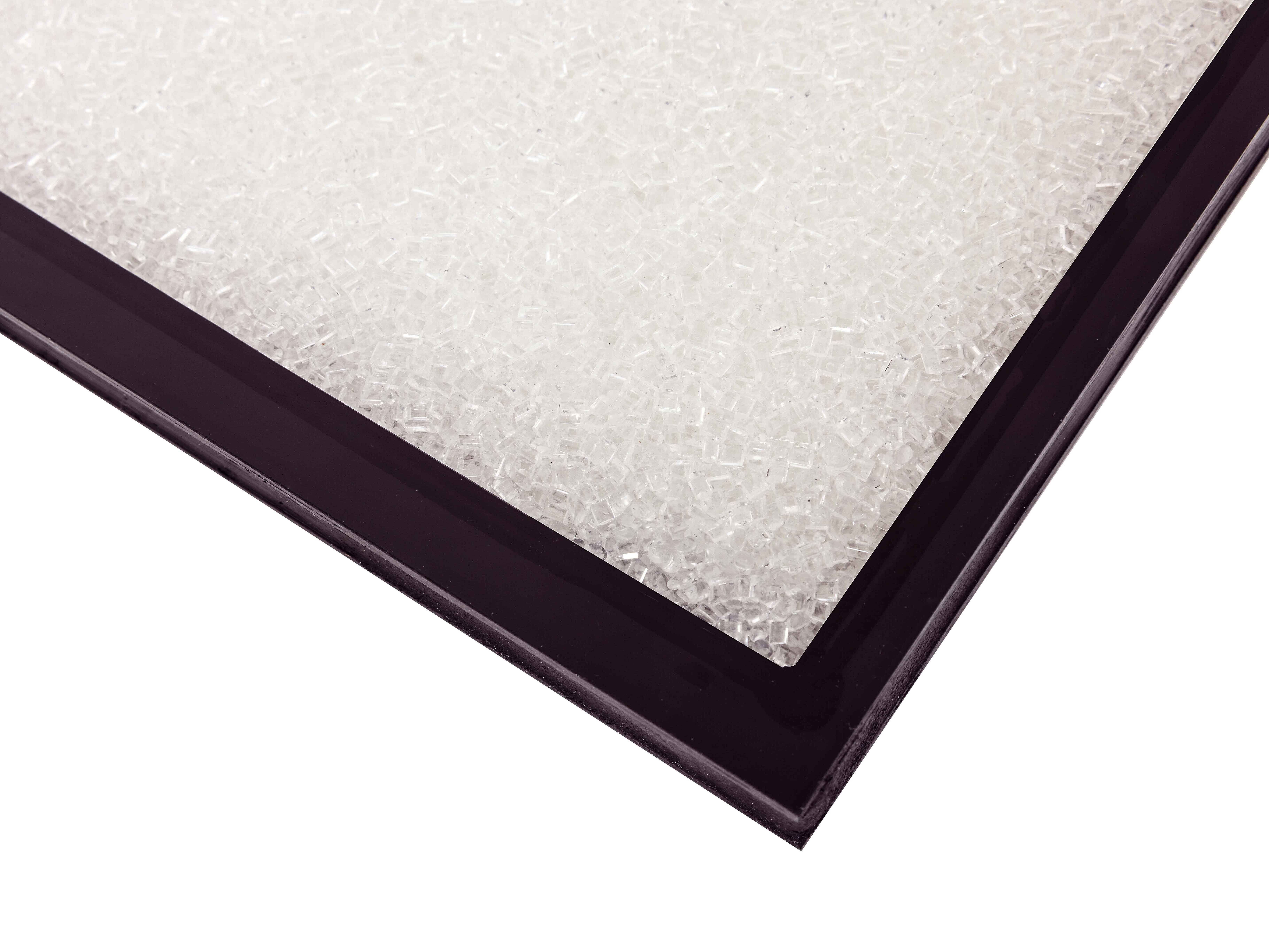

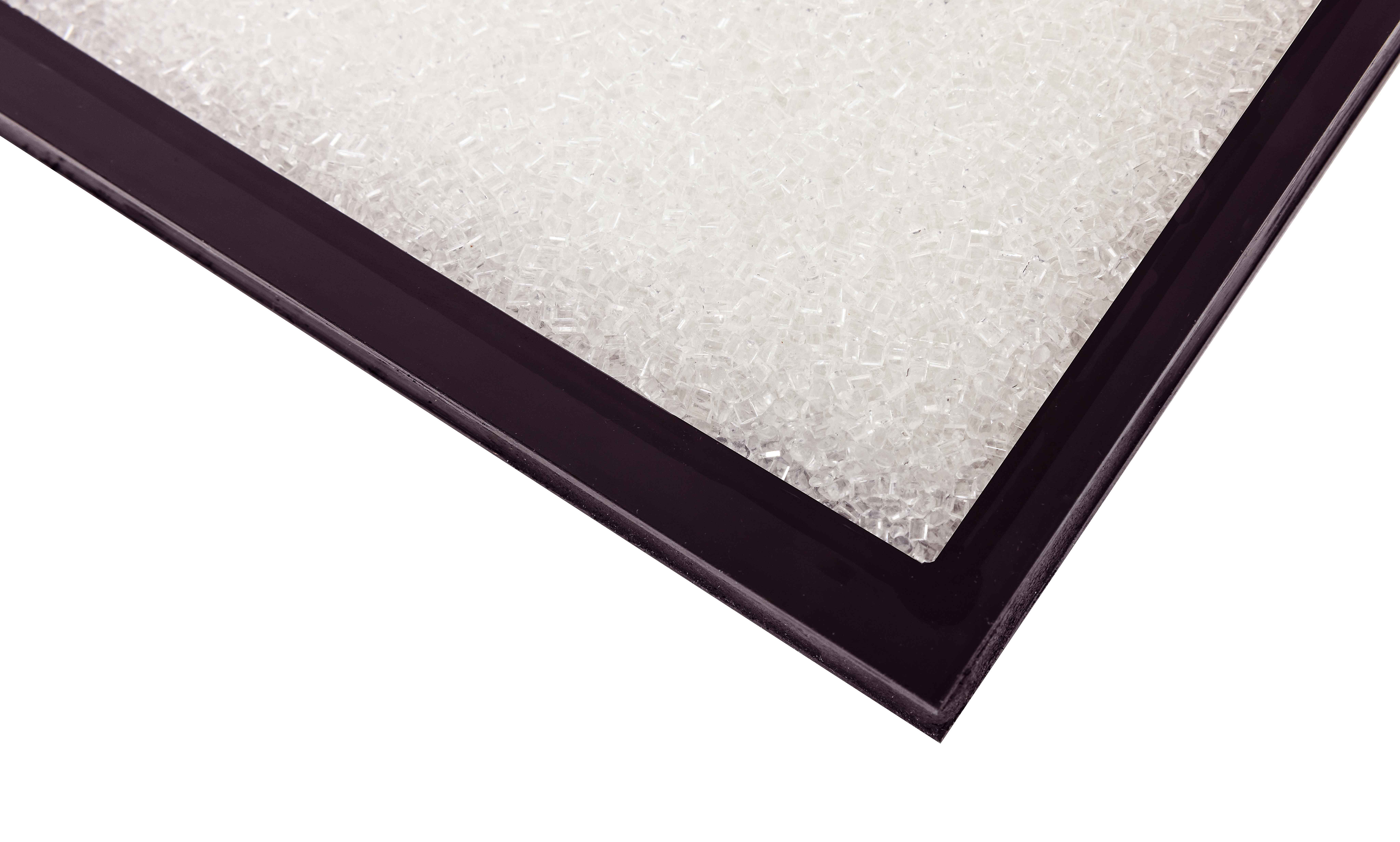

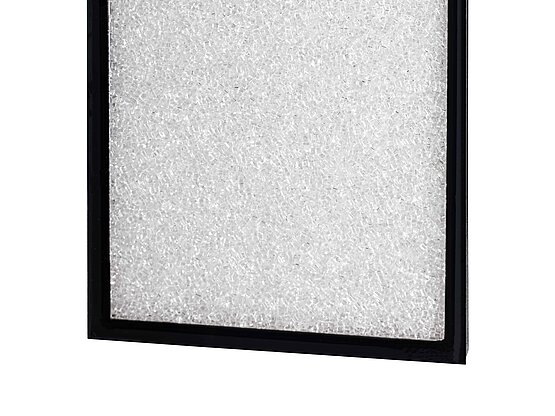

With its sparkling appearance, OKALUX R gives the façade a glossy sheen and at the same time, the translucent insert makes daylight usable.
- uniform light transmittance into the room, irrespective of irradiation conditions
- light transmission and total solar energy transmittance as required
- good colour rendering index
- good heat insulation
- UV protection as required
- sound insulation as required
- vision protection and glare protection
- attractive appearance in daylight and in artificial light
- Sustainability by the interlayer, made from 100% recycled plastic
- good recyclability
- visibility for birds
What makes OKALUX R so special is the cavity between the panes, types and thickness of glass according to structural requirement. For constructional reasons, we recommend using ESG-H as an external pane and VSG made of TVG as an inner pane. Minor fluctuations in the density of the OKALUX R may be recognisable.
- Dimensions min.: 500 mm x 500 mm
- Dimensions max.: 1.500 mm x 4.000 mm
-
Special dimensions upon request. Model units with angles of >30° are possible.
Type OKALUX R | Tv direct % | Tv diffuse % | TSET direct % | Ug value [W/(m2K)] Ug [Btu/(hr ft2 °F)] | ||
---|---|---|---|---|---|---|
Air | Argon | Krypton | ||||
33/24 | 33 | 26 | 24 | 1,6 / 0,28 | 1,3 / 0,22 | 1,1 / 0,19 |
31/18 | 31 | 25 | 18 | 1,5 / 0,27 | 1,2 / 0,21 | 1,0 / 0,17 |
30/17 | 30 | 24 | 17 | 1,5 / 0,27 | 1,2 / 0,21 | 1,0 / 0,17 |
26/16 | 26 | 21 | 16 | 1,5 / 0,27 | 1,2 / 0,21 | 1,0 / 0,17 |
26/14 | 26 | 20 | 14 | 1,5 / 0,27 | 1,2 / 0,21 | 1,0 / 0,17 |
22/13 | 22 | 17 | 13 | 1,5 / 0,27 | 1,2 / 0,21 | 1,0 / 0,17 |
17/10 | 17 | 13 | 10 | 1,5 / 0,27 | 1,2 / 0,21 | 1,0 / 0,17 |
