OKASOLAR W

Outstanding Daylight System for the Façade

OKASOLAR W is a high-performance daylight system especially developed for the facade which combines the use of daylight with effective sun protection. Fixed louvres in the cavities direct daylight deeply into the room while ensuring excellent direction-selective sun and glare-protection. A further advantage of OKASOLAR W: the cooling loads and costs for artificial illumination can be significantly reduced and the energy balance of a building optimized.

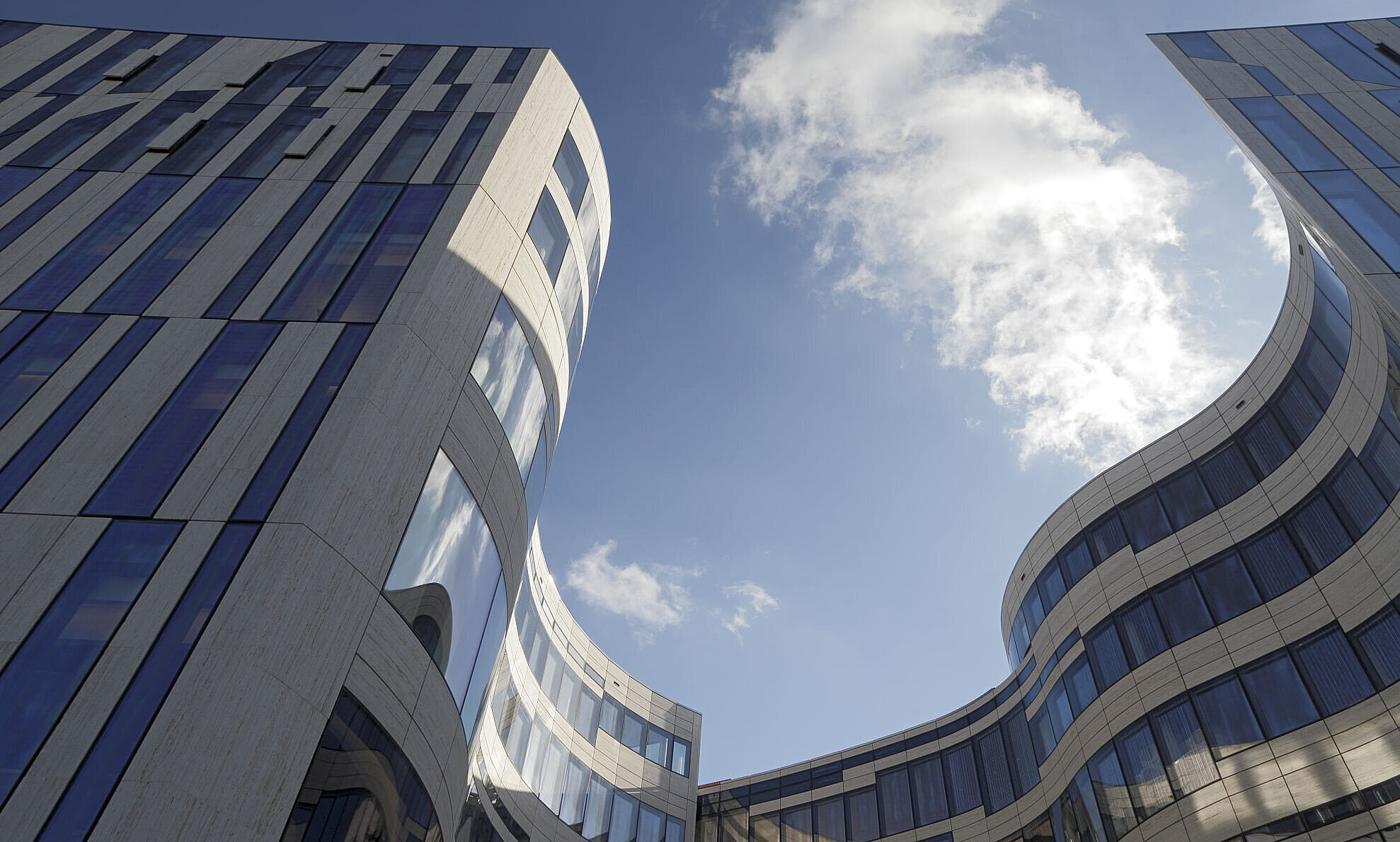

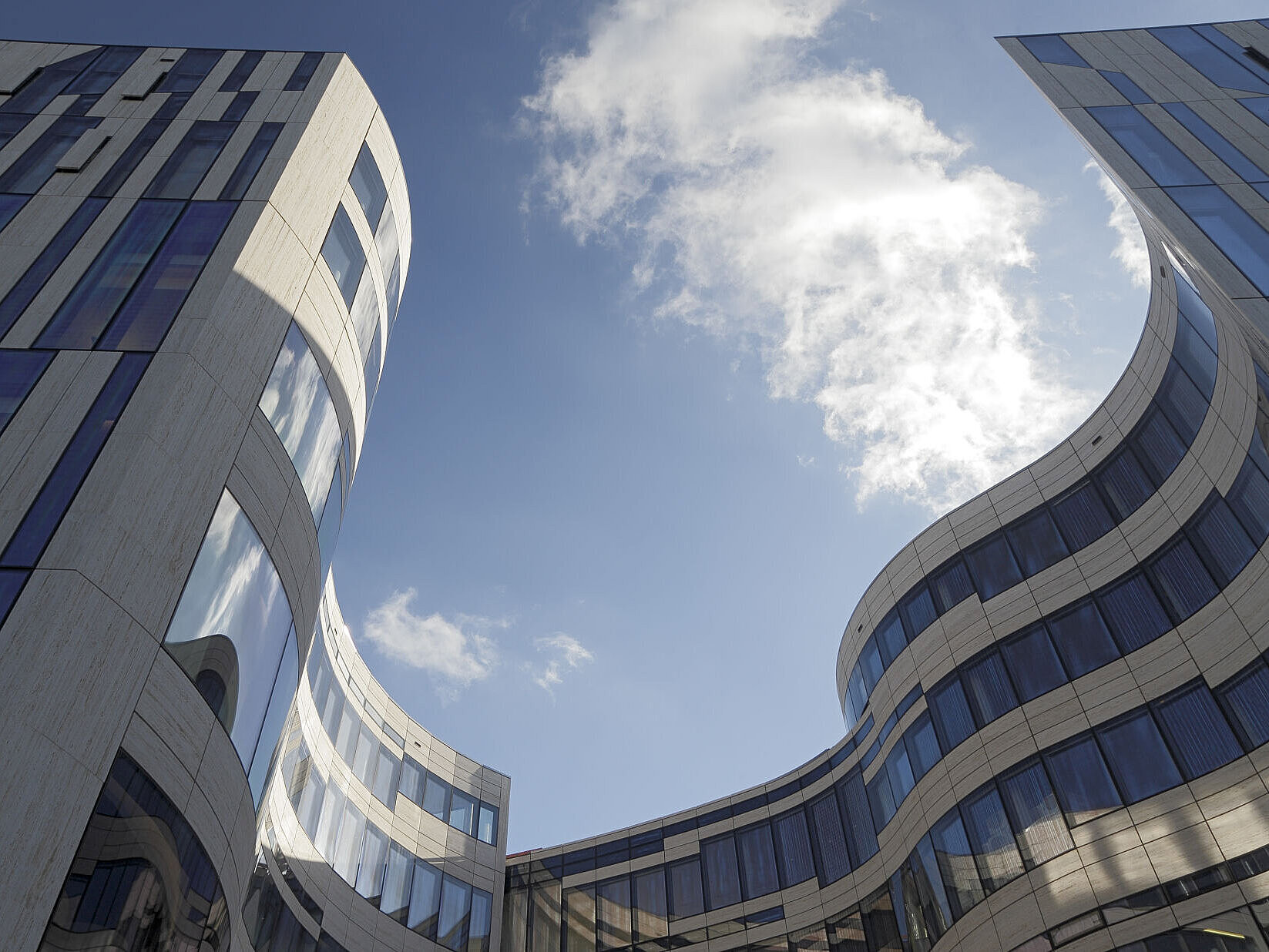

© krischerfotografie — Kö-Bogen - OKASOLAR W

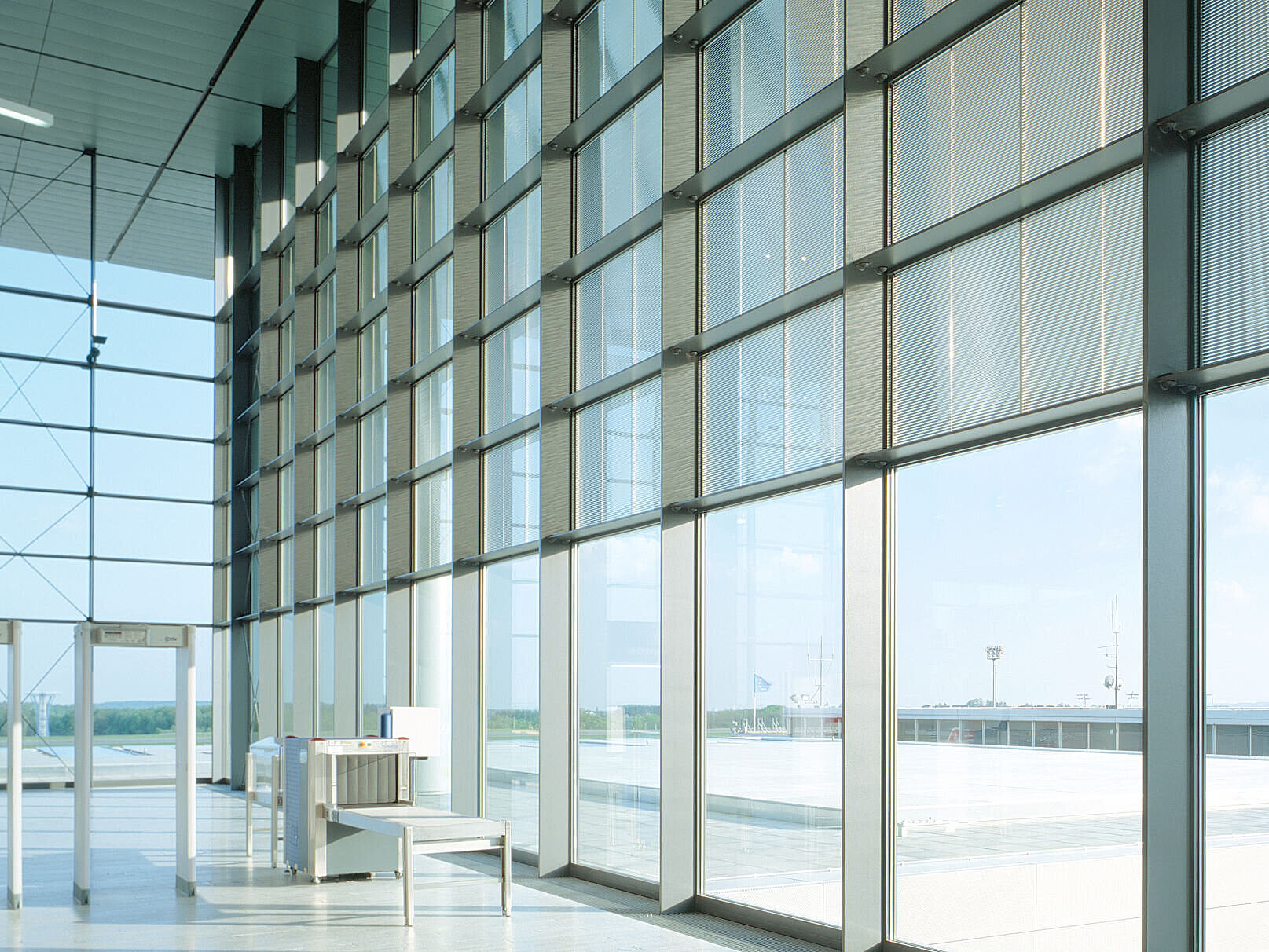

© Rainer Rehfeld — Airport Luxemburg - OKASOLAR W

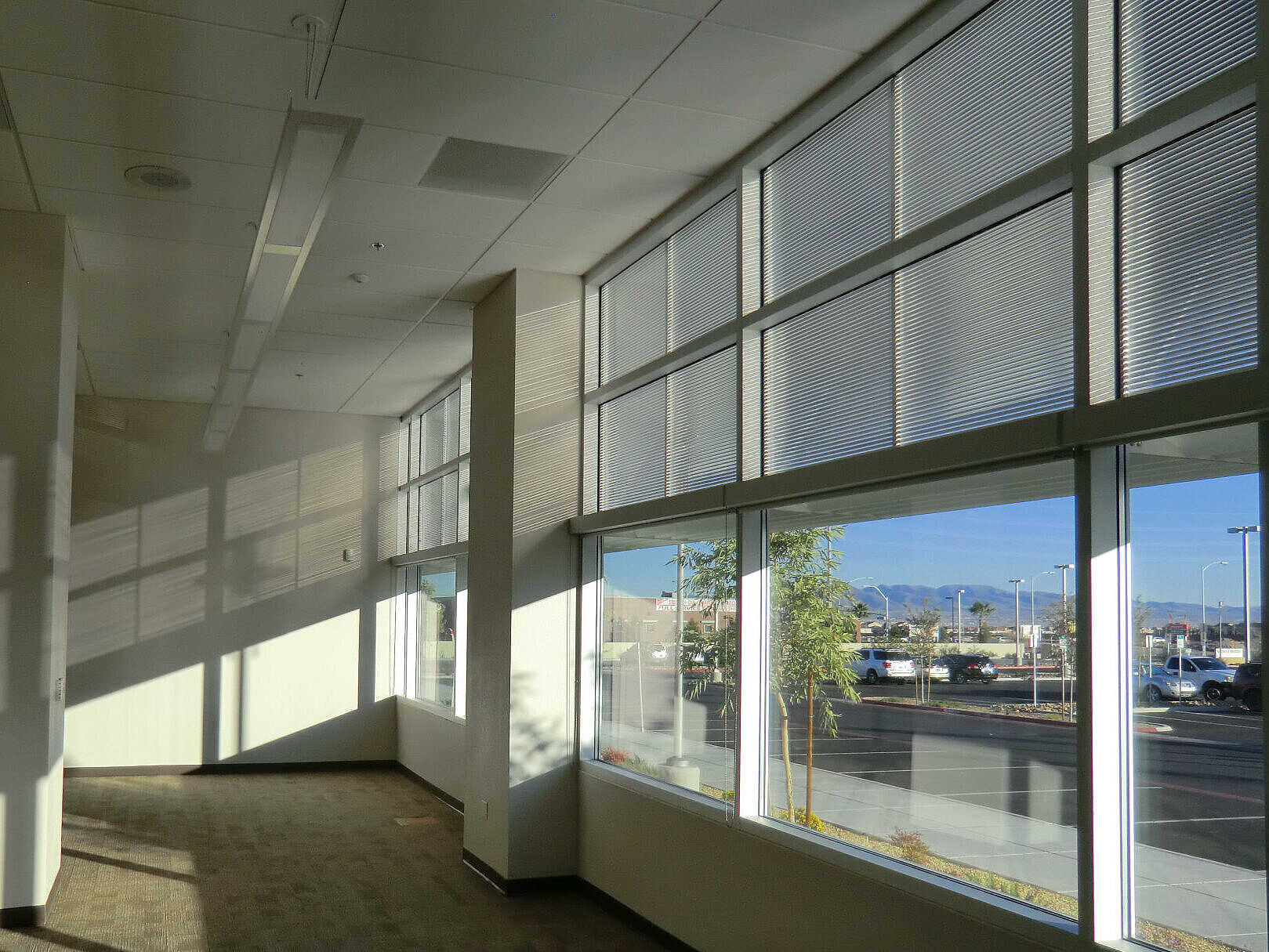

© OKALUX@ — Windmill Library and Service Center - OKASOLAR W

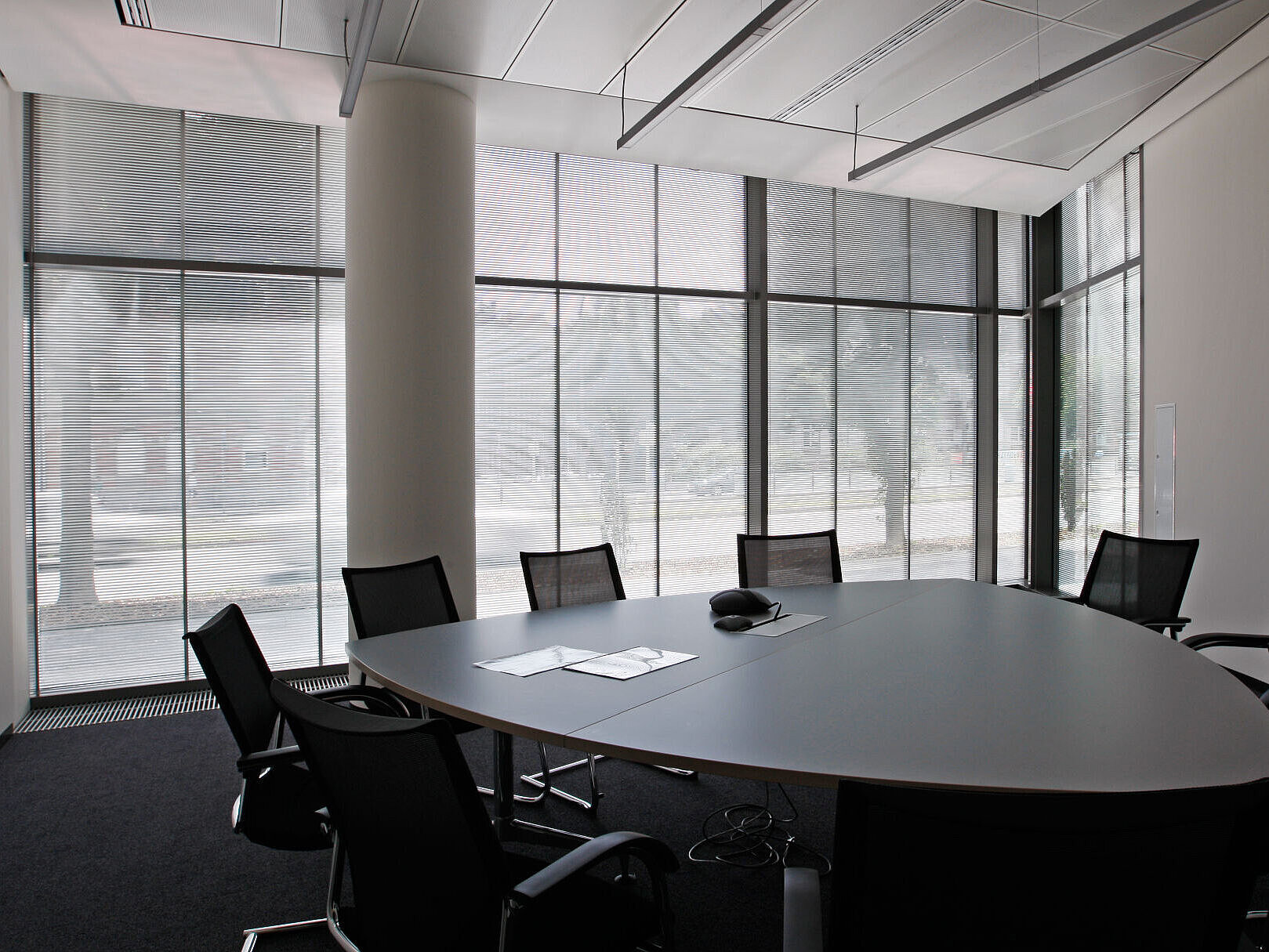

© Christian Schwab — MVV Energie AG Mannheim - OKASOLAR W

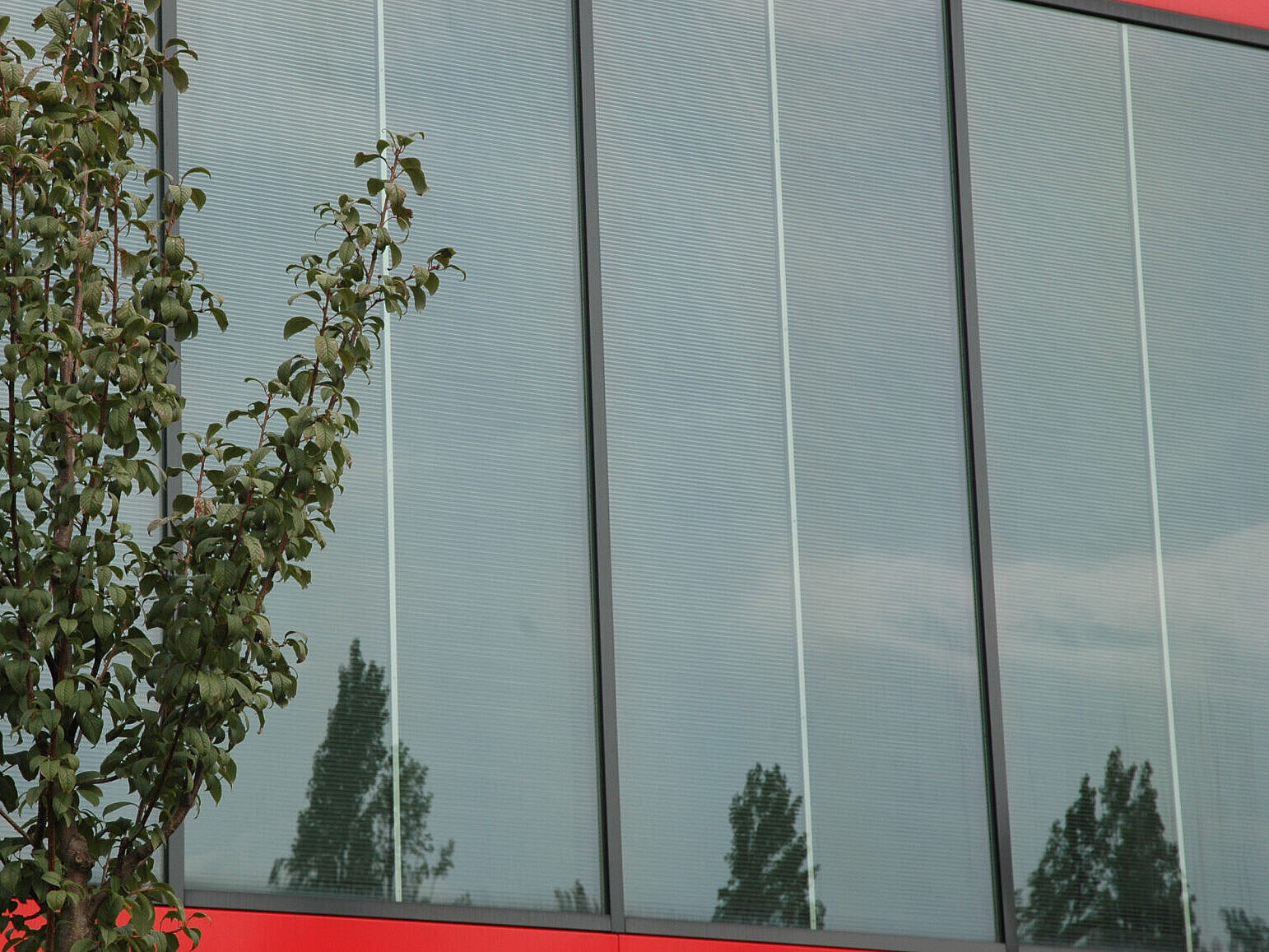

© Metallover S.A. — Bâtiment de services ECA-CEI2 - OKASOLAR W

High Functionality

Effective, direction-selective sun protection
Daylight direction towards building interior
Light transmission precisely and specifically adjustable to the Project
No limitations in the function when compared to shading systems located in the interior or exterior
Embedding in a Multifunctional Modul (MFM) is possible
Durch Kombination mit OKALUX HPI kann die Energiebilanz des Gebäudes deutlich verbessert werden
Fire protection according to requirements
Variety of special formats possible
Visibility as bird protection function

Sustainability

Daylight entry reduces need for artificial light
Reduction of cooling load in summer, solar gains in winter time
Fully recyclable
Louvres fully and durably protected inside the cavity
No additional cost for maintenance, repair or cleaning

User Comfort

Comfortable daylight atmosphere in the entire interior
Outstanding vision to the outside
Effective privacy protection

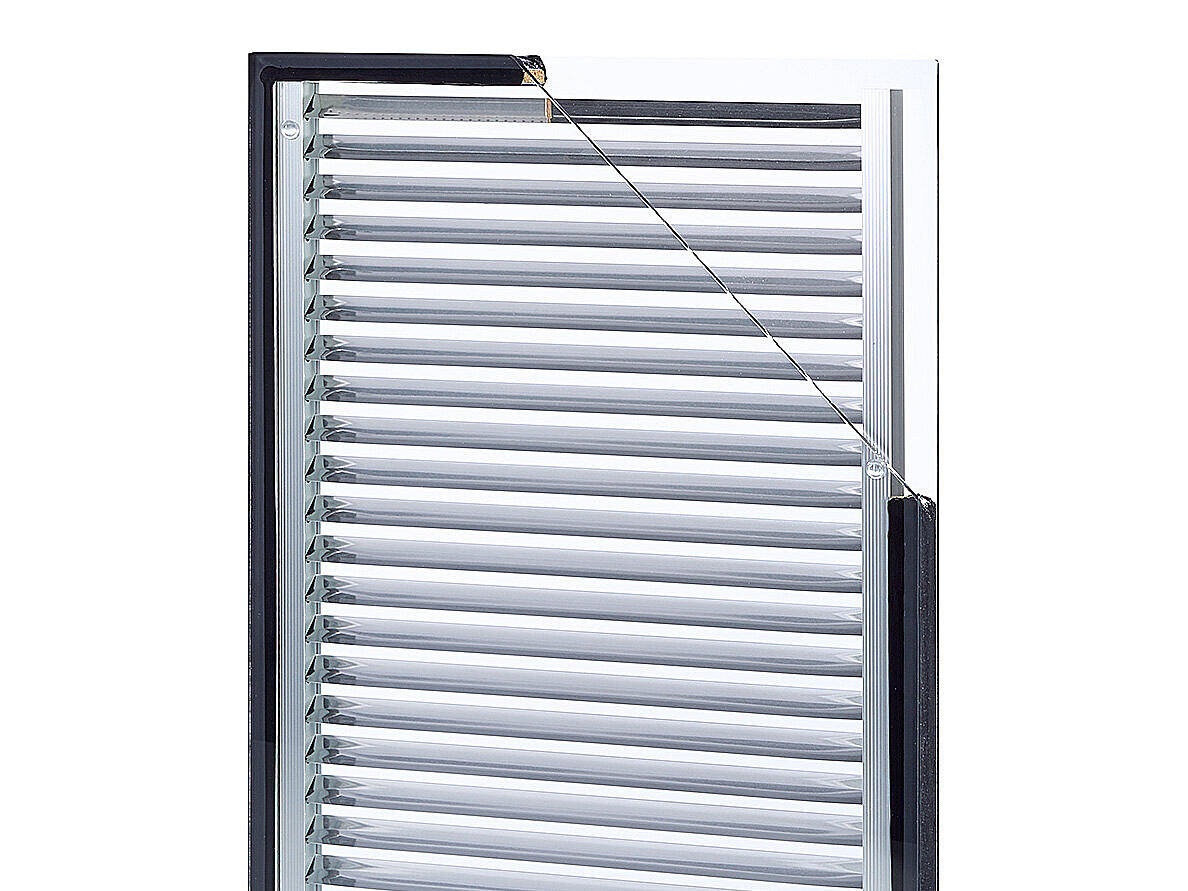

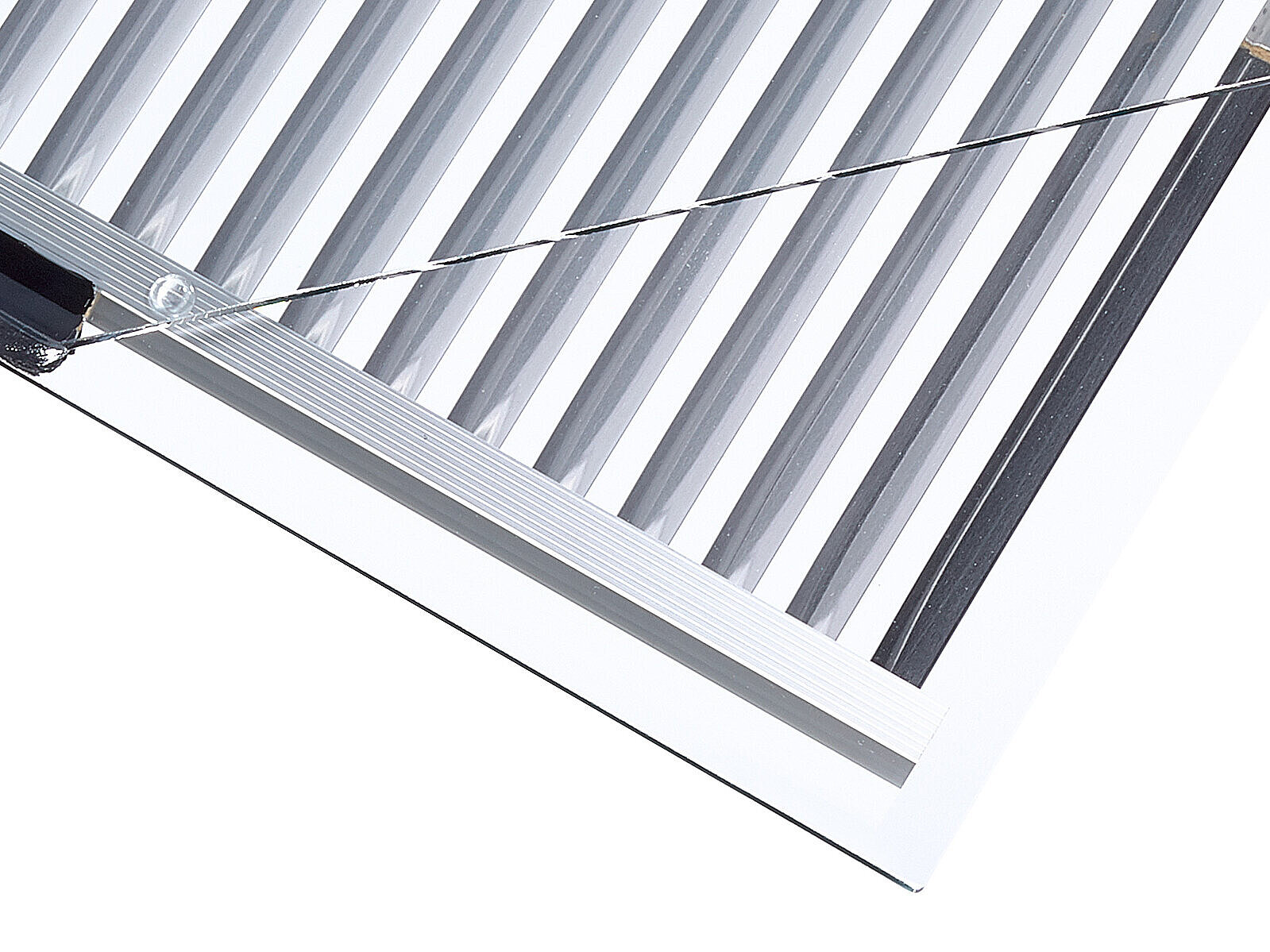

OKASOLAR W – double glazing build-up — Double glazing build-up

OKASOLAR W – double glazing build-up – principle of function — Double glazing build-up – principle of function

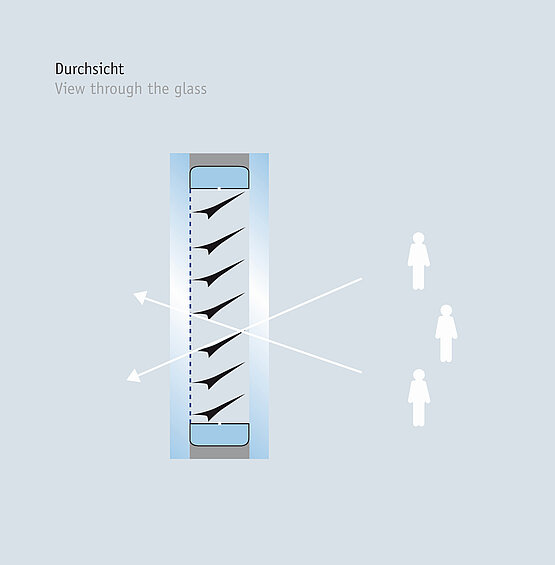

OKASOLAR W – double glazing build-up – Transparency — Double glazing build-up - Transparency

Maximum dimensions: 3,000 mm x 4,000 mm, larger sizes available upon request
Maximum dimensions: 7 m²

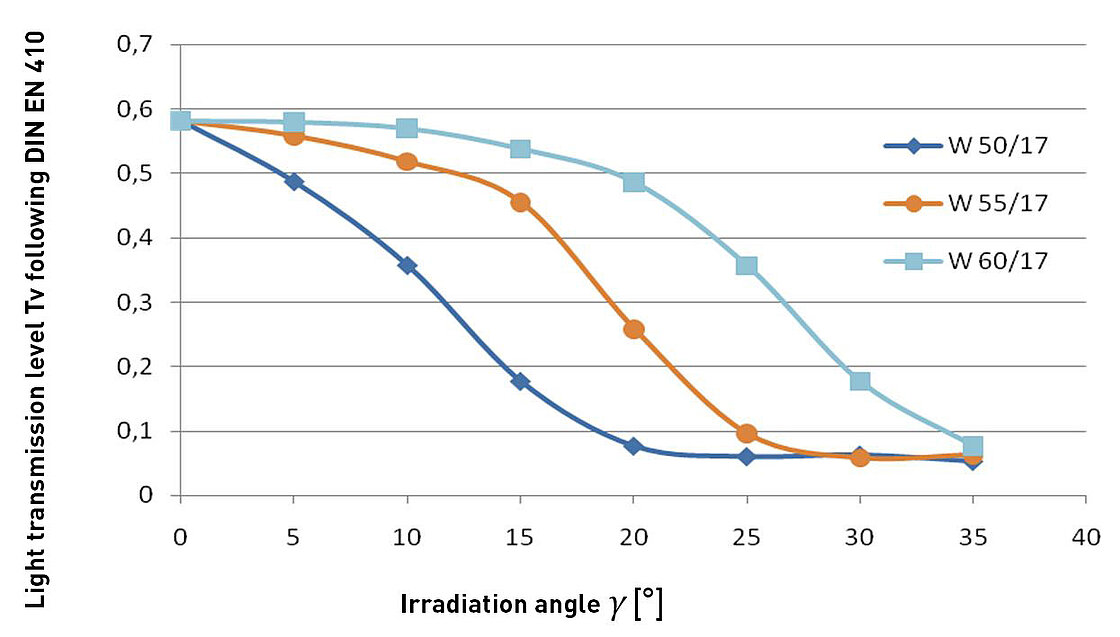

Partial transparency: 38 %, 41 % and 45 % (depending on the angle of louvre)
Louvre distance: 17 mm
All technical values, such as light transmission, TSET and U_g-value can be adjusted matching requirements by varying othre constructions and glass types.

OKASOLAR W	Total Thickness	Functional coating	U_g-value [W/(m²K)]			TSET	Light Transmission
Standard double glazing build-up	mm	Type	Krypton	Argon	Air	(%) min.¹- max.²	(%) min.¹ - max.²
	22	low-e	1.1	1.5	1.9	18 - 49	5 - 59
	22	solar	1.0	1.4	1.8	12 - 33	4 - 51

¹ for angle of incidence γ = 60° ² for angle of incidence γ = 0° (vertical to the glass surface)

OKASOLAR W	Total Thickness	Functional coating	U_g-value [W/(m²K)]			TSET	Light Transmission
Standard triple glazing build-up	mm	Type	Krypton	Argon	Air	(%) min.¹- max.²	(%) min.¹ - max.²
	22+10	low-e	0.6	0.8	1.1	16 - 42	4 - 53
	22+10	solar	0.6	0.8	1.1	11 - 31	4 - 46
