OKASOLAR F

Optimized Daylight System for the Façade

OKASOLAR F is a daylight system optimized for facades and unites the use of daylight with effective sun protection. The louvre type OKASOLAR F U reflects a large part of the solar irradiation to the outside. OKASOLAR F O is also retro-reflective and directs the incidental daylight deeply into the room. By combining both louvre types in one element, the requirements of the interior can be dealt with specifically.

OKASOLAR F can significantly lower the cost for artificial illumination and cooling loads and optimize the energy balance of a building. Due to the extremely narrow profile cross-section of the louvres, OKASOLAR F is especially well-suited for triple-insulating glazing and narrow pane build-ups.

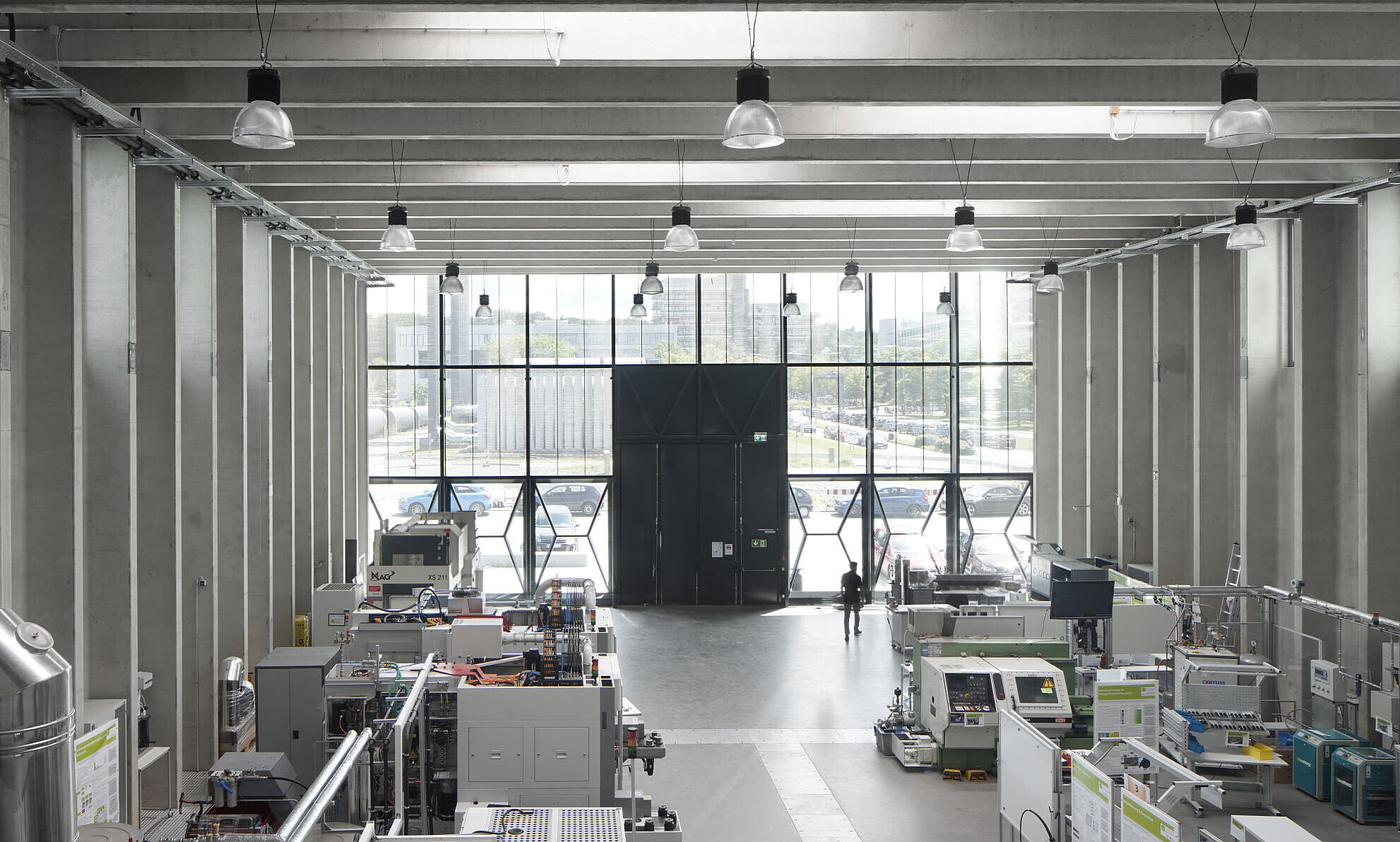

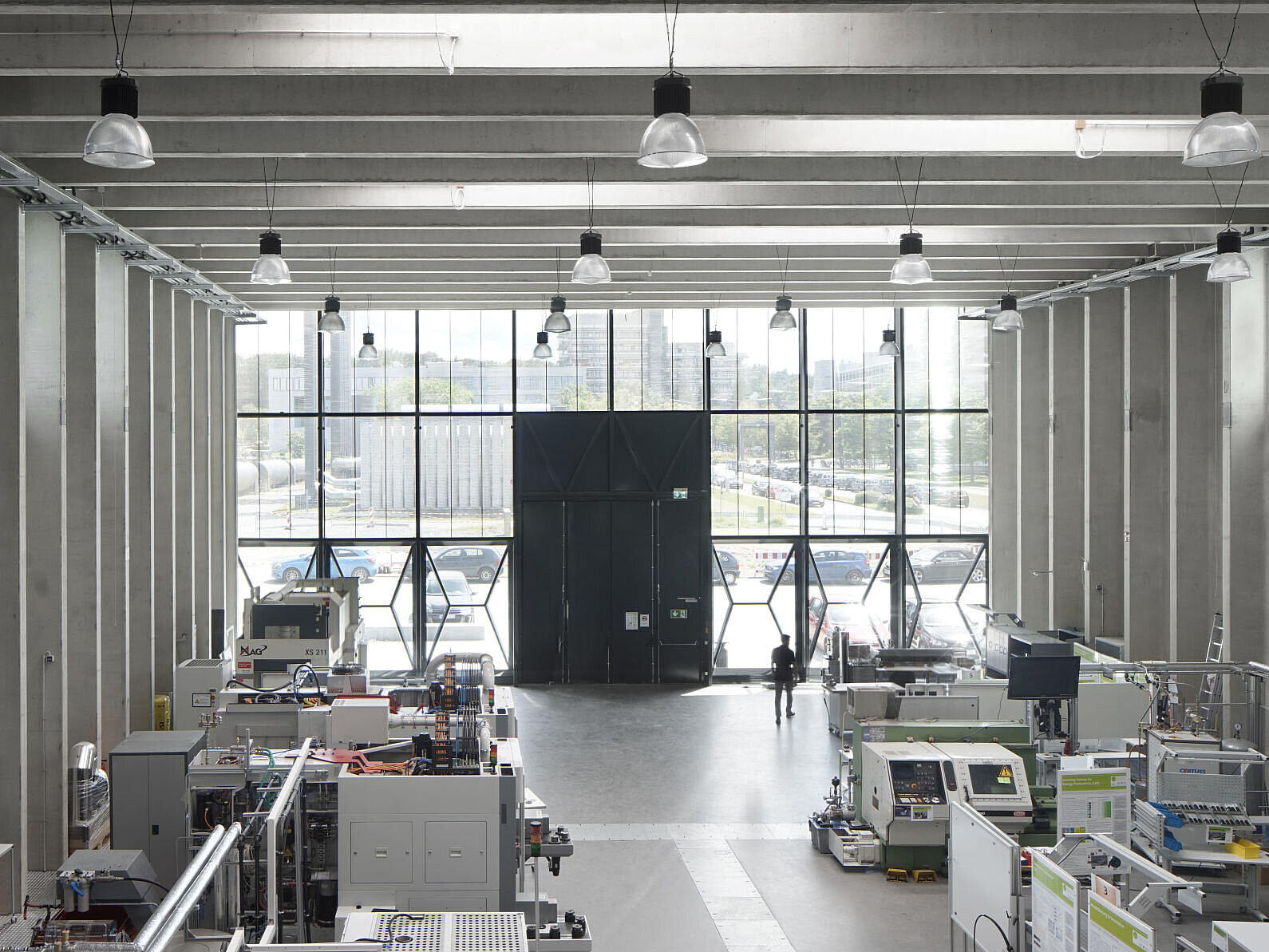

© Eibe Sönnecken — ETA Factory - TU Darmstadt - OKASOLAR F O

© Achim Birnbaum — Government-owned Seminar for Didactics and Teacher Education Ludwigsburg - OKASOLAR F OU

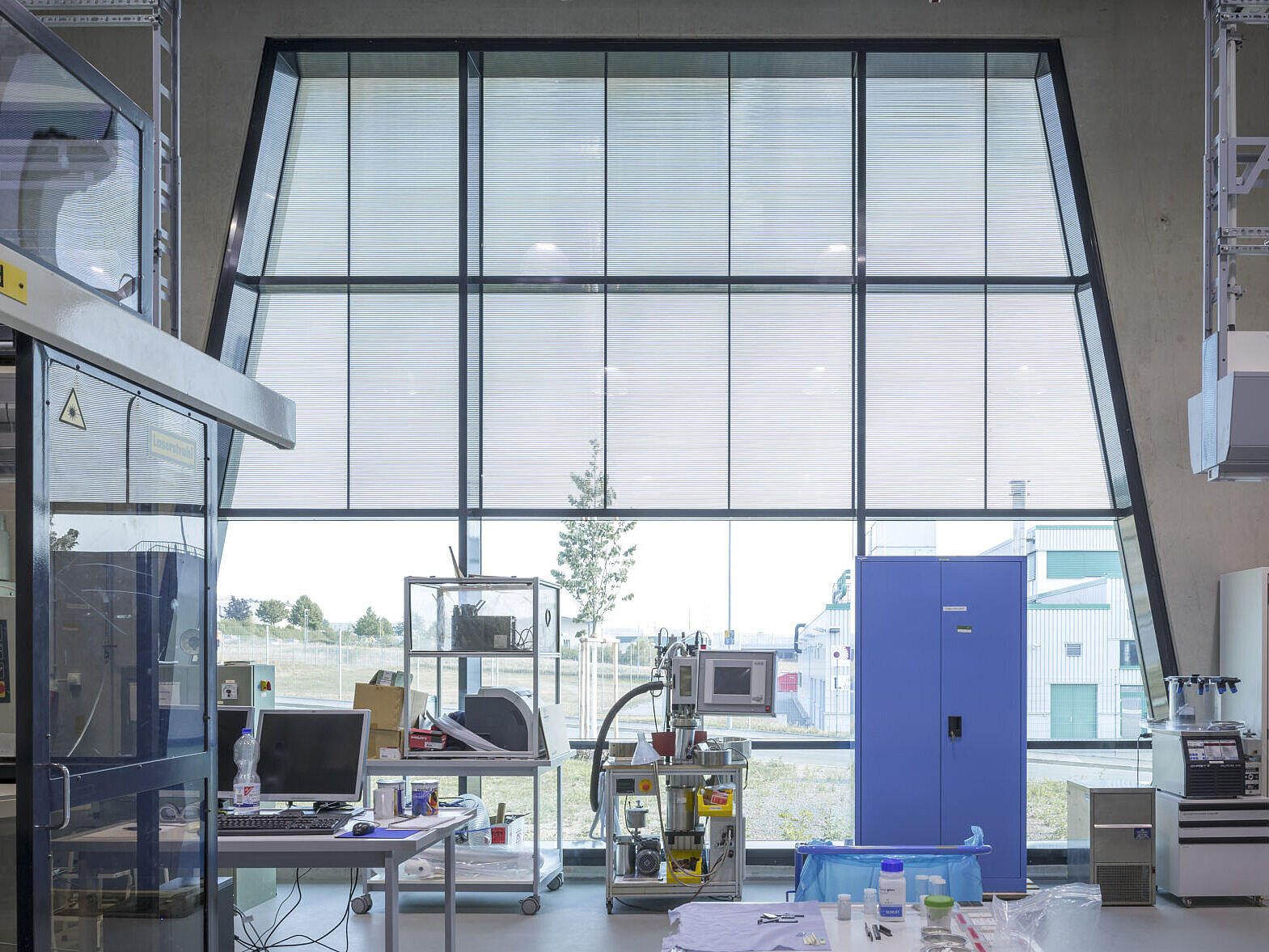

© Yohan Zerdoun Photography — Fraunhofer Institute for High Temperature Light Construction HTL - OKASOLAR F U

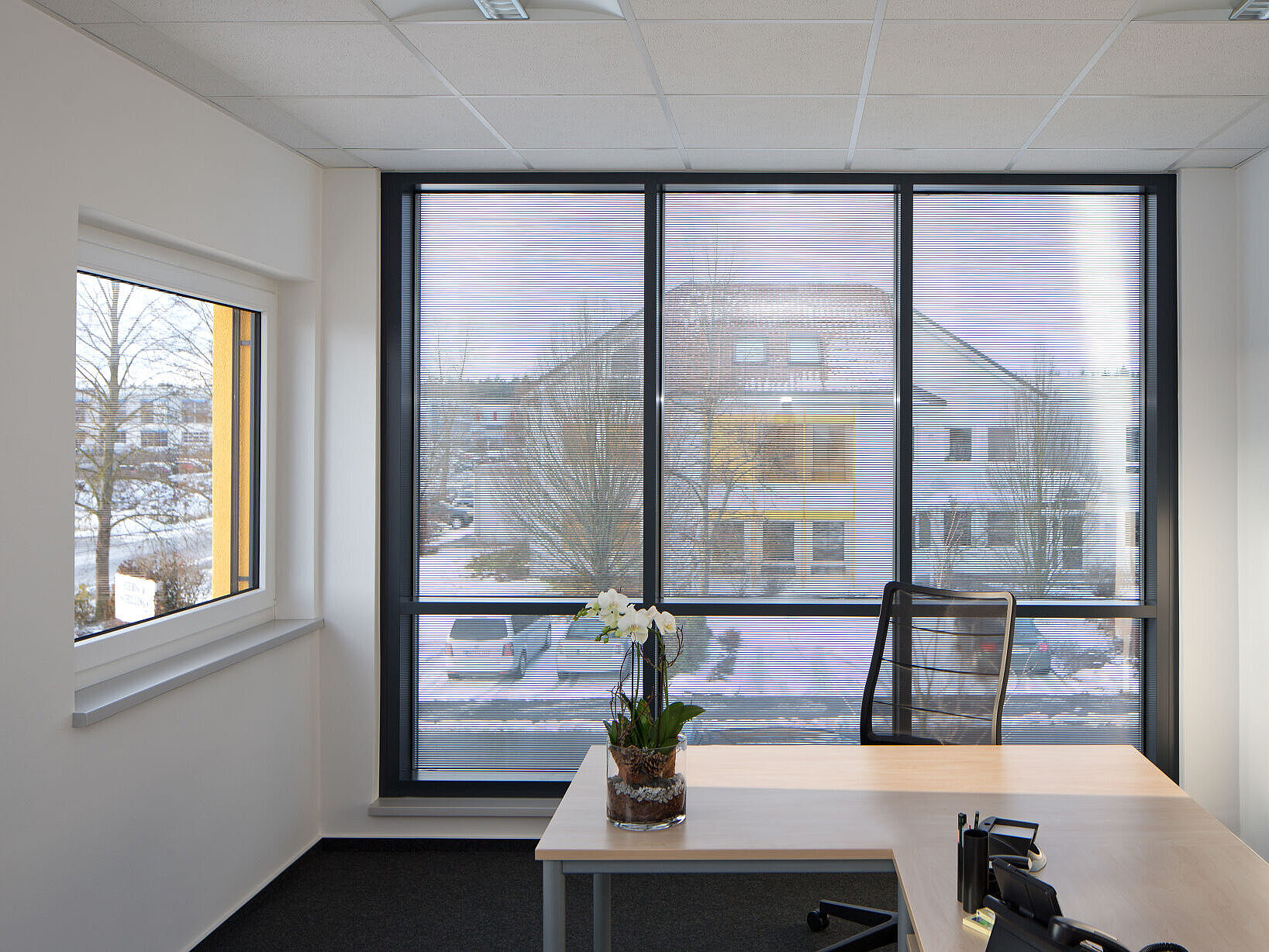

© Christian Schwab — Profilmetall Engineering GmbH - OKASOLAR F OU

High Functionality

Effective, direction-selective sun protection
Daylight direction towards building interior
Light transmission precisely and specifically adjustable to the project
No limitations in the function when compared to shading systems located in the interior or exterior
Two functionally different louvre types can be combined in one insulating glass module without visible differences

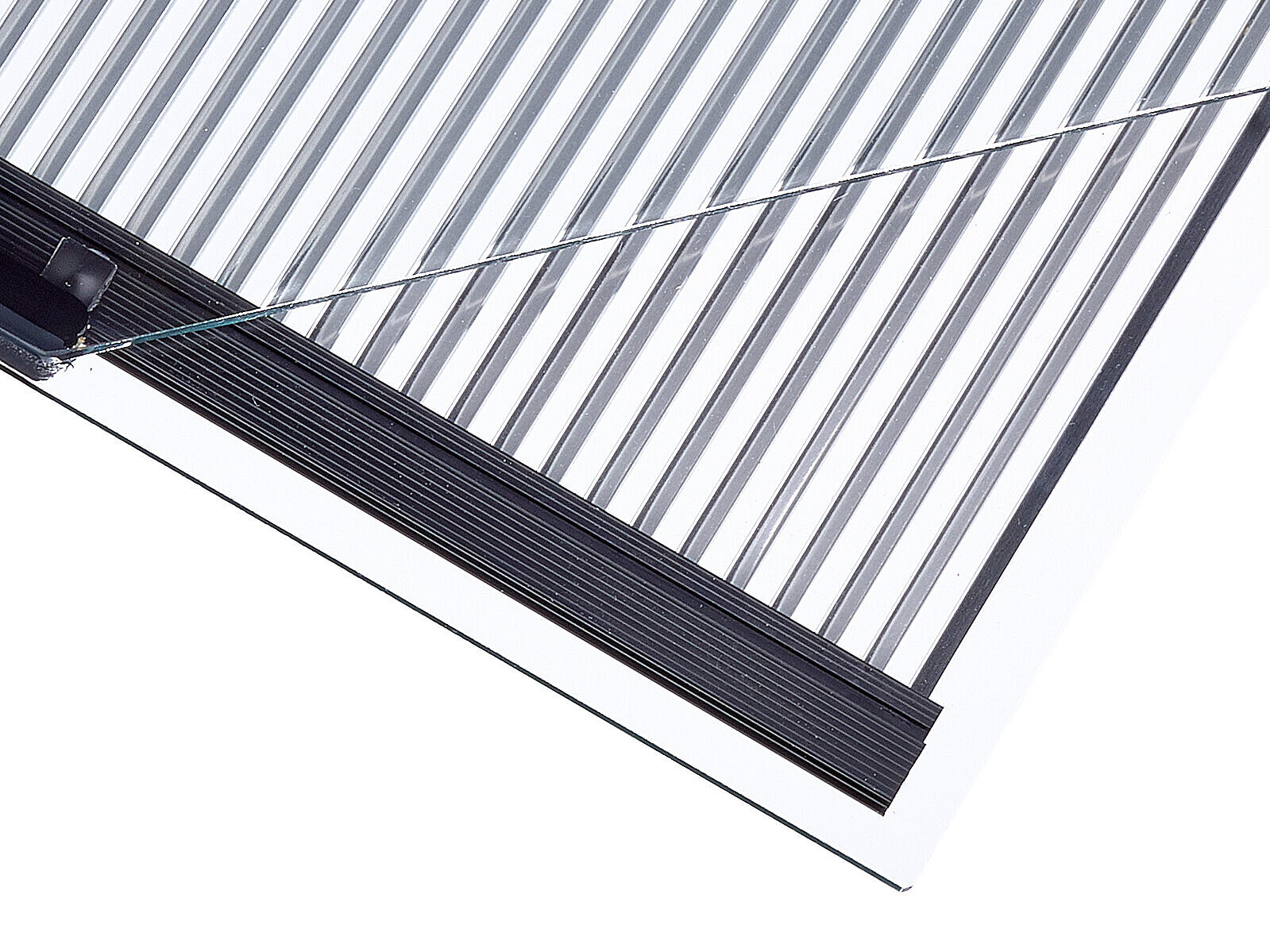

The extremely narrow dimension of the louvres enables especially narrow pane build-ups.
Fire protection according to requirements
Variety of special formats possible
Visibility as bird protection function

Sustainability

Daylight entry reduces need for artificial light
Reduction of cooling load in summer, solar gains in winter time
Fully recyclable
Louvres fully and durably protected inside the cavity
No additional cost for maintenance, repair or cleaning

User Comfort

Comfortable daylight atmosphere in the entire interior
Outstanding vision to the outside
Effective privacy protection

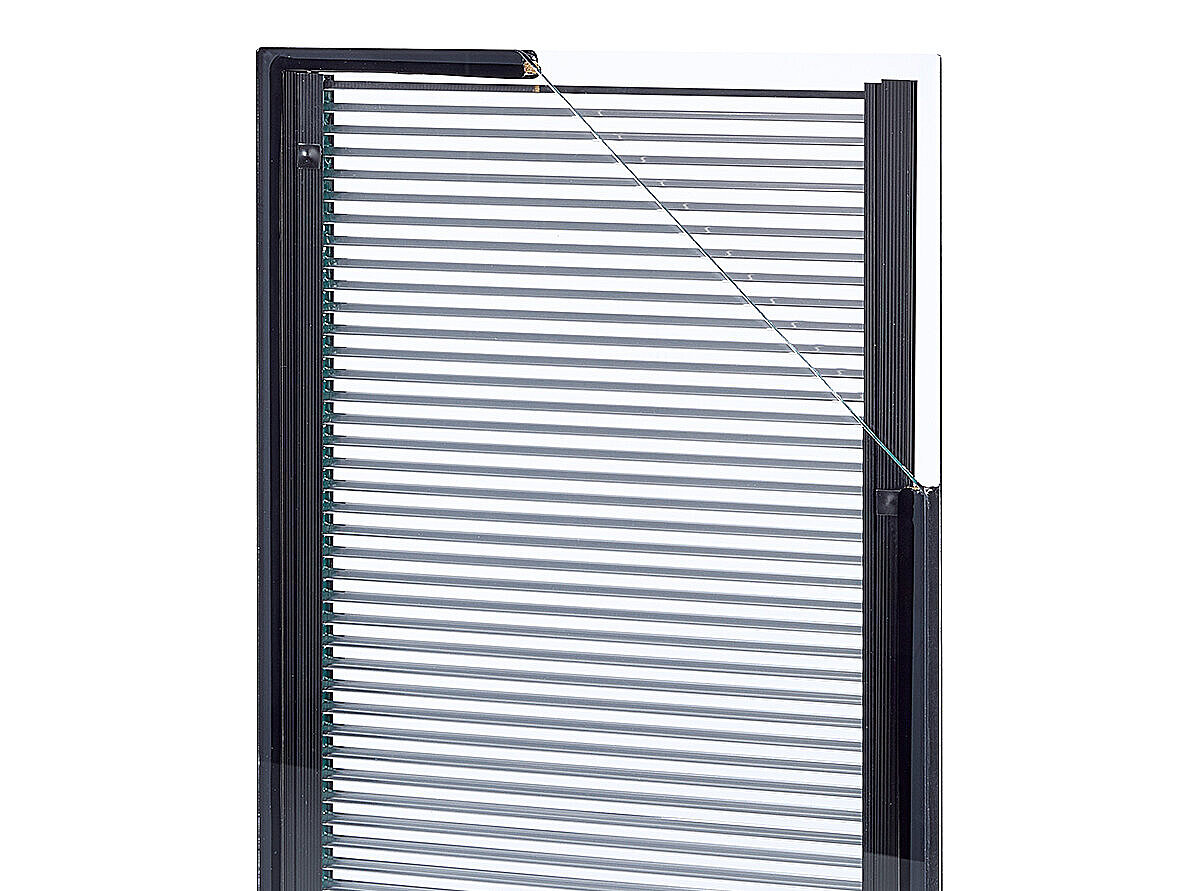

OKASOLAR F O – double glazing build-up — Double glazing build-up

OKASOLAR F U – double glazing build-up — Double glazing build-up

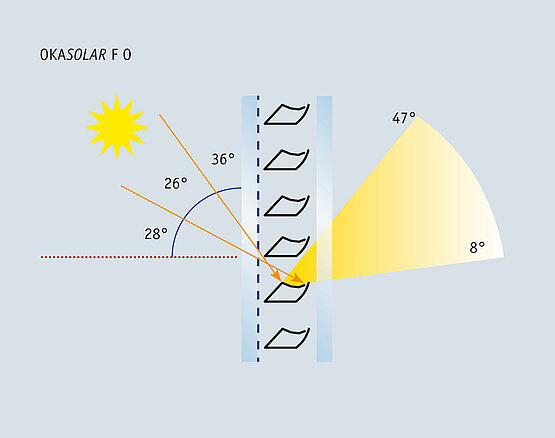

OKASOLAR F O – double glazing build-up – principle of function — OKASOLAR F O reflects the daylight deep into the room

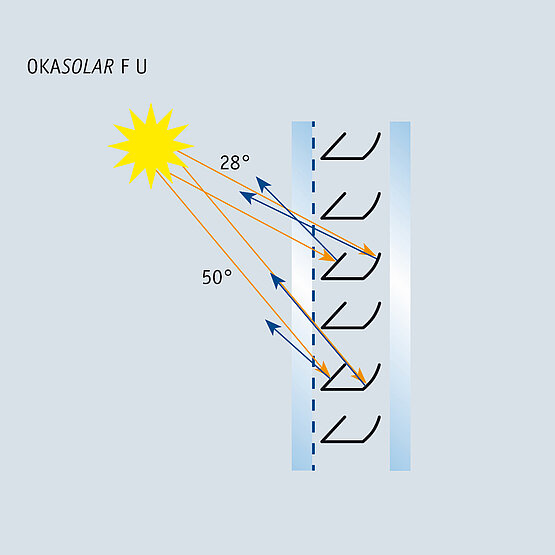

OKASOLAR F U – double glazing build-up – principle of function — OKASOLAR F U reflects the majority of solar radiation back into the atmosphere

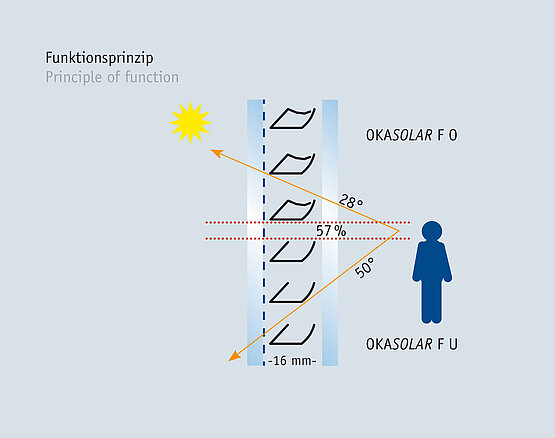

OKASOLAR F – double glazing build-up – Typs F O and F U combined - Transparency — double glazing build-up - Typs F O and F U combined – Transparency

Maximum dimensions: 3,000 mm x 4,000 mm, larger sizes available upon request
Maximum dimensions: 7 m²
Partial transparency: 57 %
Louvre distance: 9.5 mm

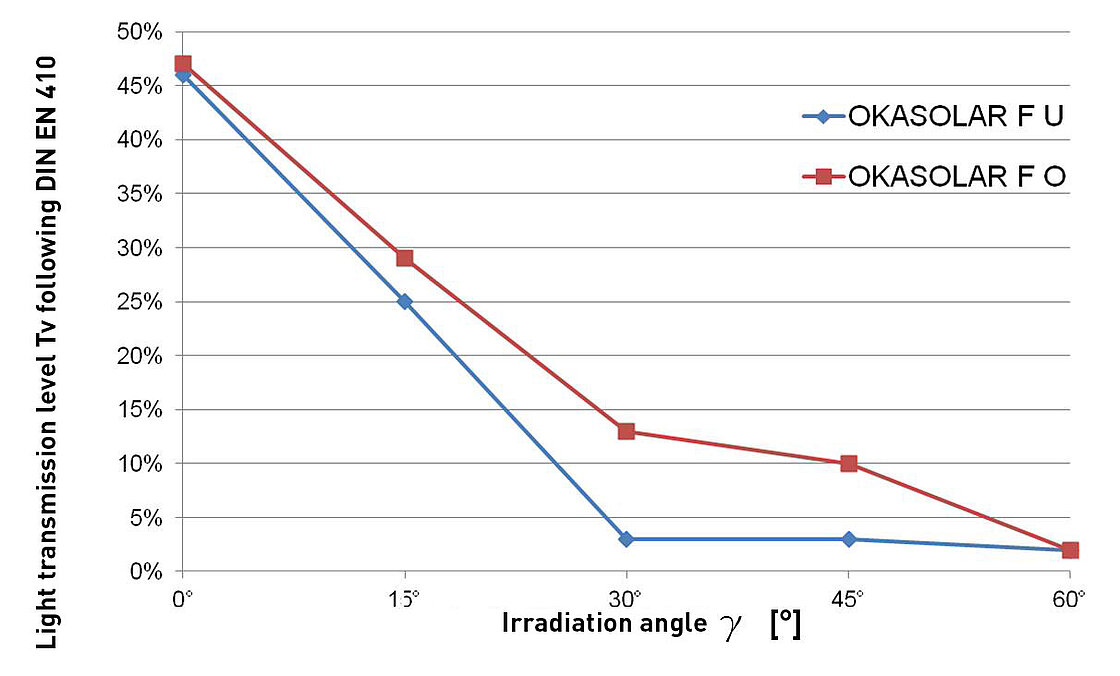

All technical values, such as light transmission, TSET and U_g-values can be adjusted matching requirements by varying other constructions and glass types.

OKASOLAR F		Total Thickness	Functional coating	U_g-value [W/(m²K)]			TSET	Light Transmission
Double Glazing		mm	Type	Krypton	Argon	Air	(%) min.¹- max.²	(%) min.¹ - max.²
	Typ F O	16	low-e	1.1	1.7	2.1	18 - 46	2 - 48
	Typ F O	16	solar	1.1	1.7	2.1	15 - 32	2 - 41
	Typ F U	16	low-e	1.1	1.7	2.1	18 - 45	2 - 47
	Typ F U	16	solar	1.1	1.7	2.1	14 - 31	2 - 41

¹ for angle of incidence γ = 60° ² for angle of incidence γ = 0° (vertical to the glass surface)

OKASOLAR F	Total Thickness	Functional coating	U_g-value [W/(m²K)]			TSET	Light Transmission
Triple Glazing	mm	Type	Krypton	Argon	Air	(%) min.¹- max.²	(%) min.¹ - max.²
Typ F O	16+10	low-e	0.6	0.9	1.2	11 - 35	2 - 43
Typ F O	16+10	solar	0.6	0.9	1.1	9 - 24	2 - 37
Typ F U	16+10	low-e	0.6	0.9	1.2	11 - 35	2 - 42
Typ F U	16+10	solar	0.6	0.9	1.1	9 - 25	2 - 37
