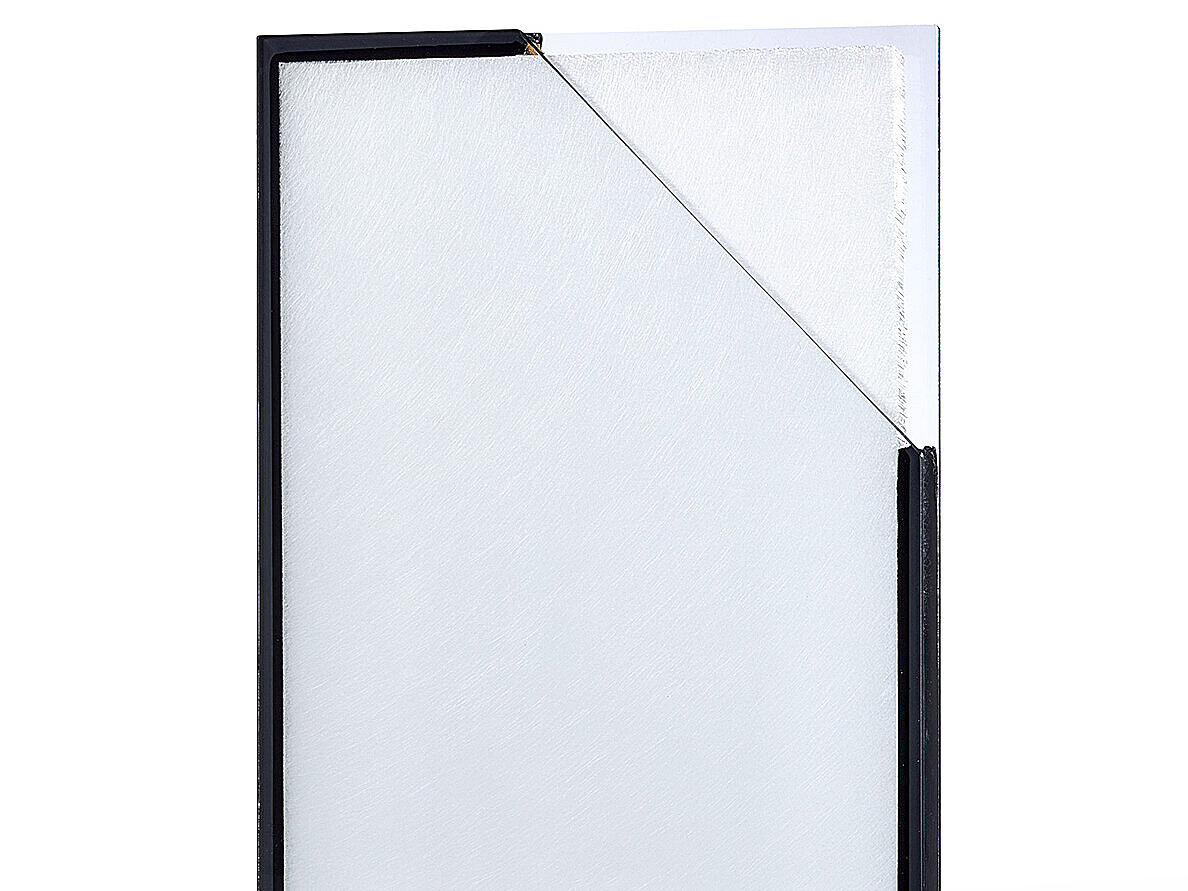

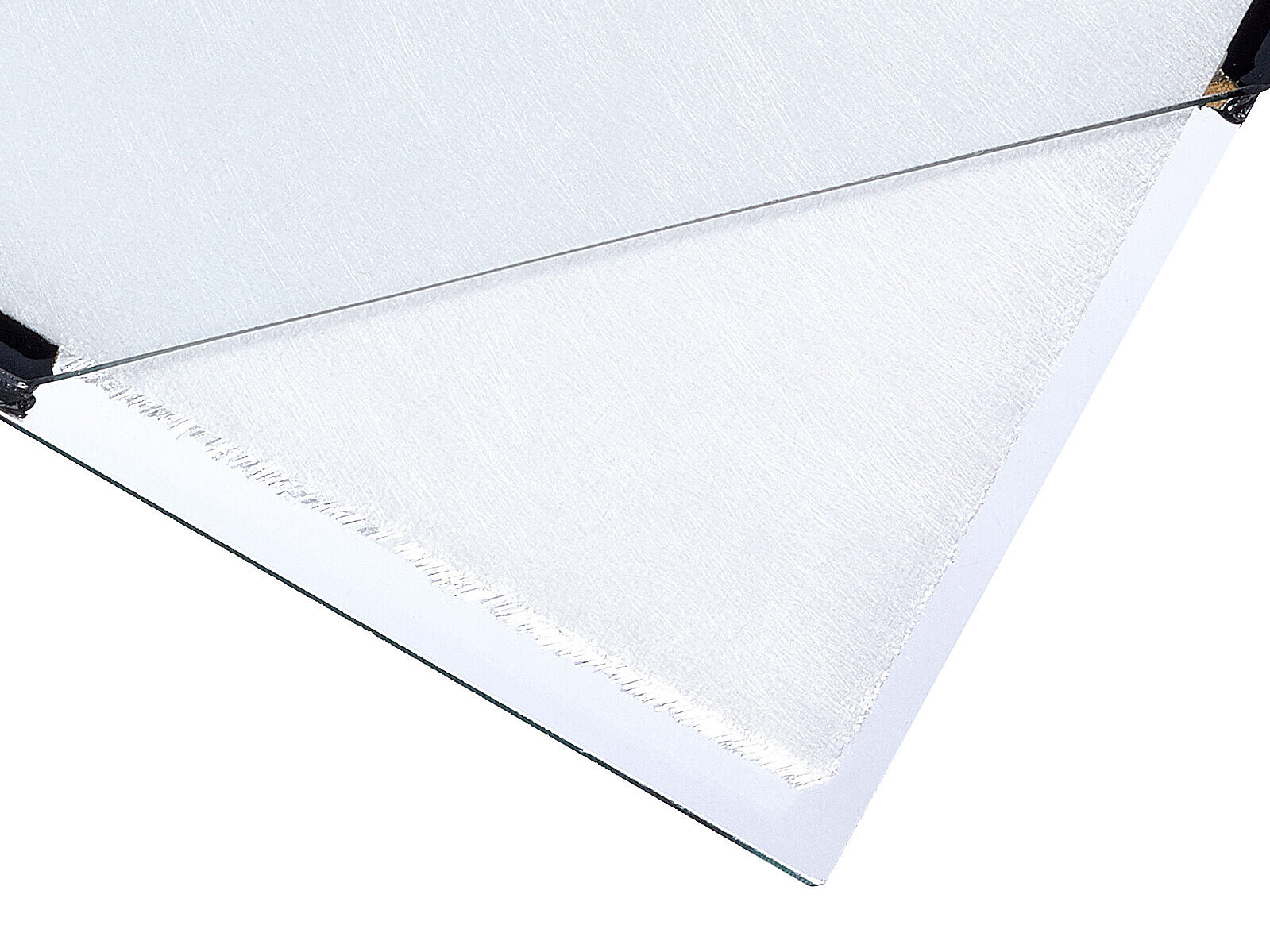

OKALUX light-diffusing insulating glass offers numerous advantages: The capillary slab in the cavity allows for an even and shadow-free illumination with daylight deep into the room. The sun and glare-protection are very good, the heat insulation excellent and the transmission values individually adjustable to the requirements.
Thanks to a functional layer in combination with a gas-filled cavity for double- and triple-glazing build-ups, an optimized Ug-value can be achieved with the product variants OKALUX+ and OKALUX K.
High Functionality
- Optimal, even illumination of the room, without hard shadows
- Effective sun and glare protection
- High light transmission, light entry can be adjusted individually
- High colour rendering
- Good heat and sound insulation
- Protection from UV rays
- Bird-friendly solution
- Fire protection according to requirements
Sustainability
- Daylight entry reduces amount of artificial light required
- Reduction of cooling loads in summer
- Fully recyclable
- Long-Lasting, maintenance-free and easy to clean
- Attractive Aesthetics
Attractive appearance
- Vivid surface with depth effect
- Capillary inserts can be printed with colour and décor
User Comfort
- Comfortable daylight atmosphere
- Effective privacy protection
- Reduced amount of solar input into the building
- Maximum dimensions: 2,000 mm x 4,500 mm, larger sizes available upon request
- All technical values, such as light transmission, TSET and Ug-values can be varied by using other constructions and glass types.
| OKALUX | Total Thickness | Ug-value [W/(m2K)] | TSET | Light Transmission | |||
|---|---|---|---|---|---|---|---|
| Double Glazing | mm | Krypton | Argon | Air | SHGC (%) direct | (%) direct | |
| | from 16 | - | - | 2.7 - 1.31 | 25 - 431 | 21 - 451 |
1 Depending on capillary insert 8 - 40 mm
