Mirrored glass

Used either as a divider mirror or a two-way mirror: our special glass with partial or one-sided mirror effect enables a wide range of applications.

Go to

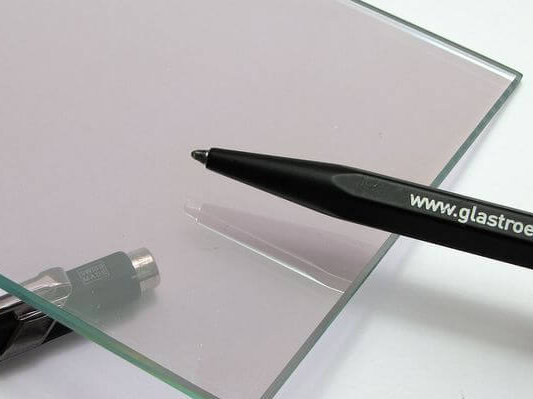

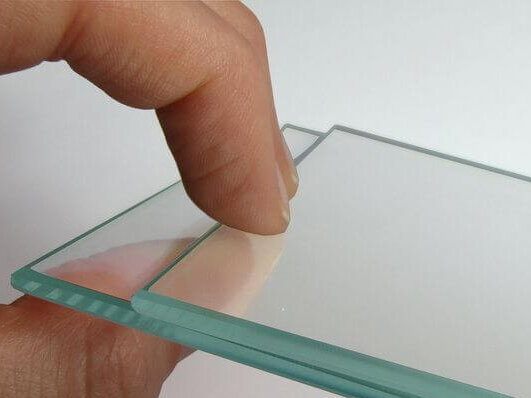

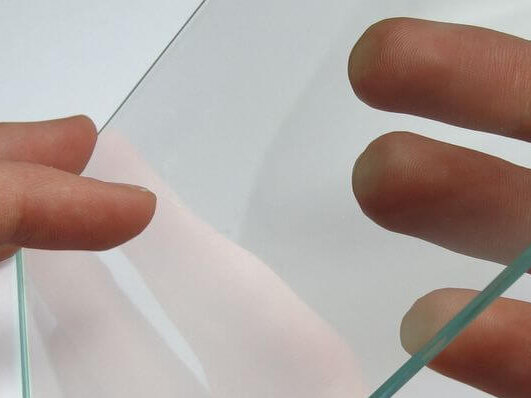

Special glass with a partial mirror effect

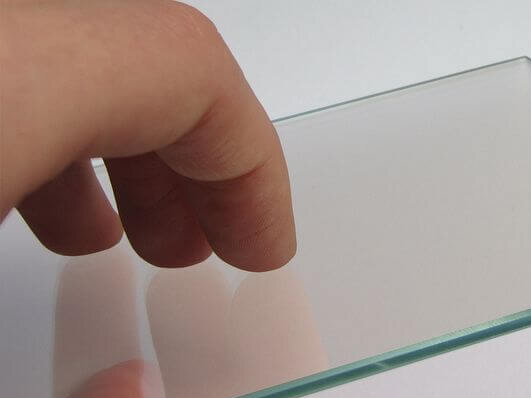

BEAMSPLITTER separates the incoming visible light into a reflected portion and a transmitted portion without absorption or loss of energy and light. This manipulation of light reflection and transmission opens up an interesting range of possible applications.

In architecture and design BEAMSPLITTER can be used in displays, screens as well as in room partitions, glass fins etc.

As an option it can also be used in combination with LUXAR® anti reflective coating on the other glass surface to minimize double images in sensitive applications. BEAMSPLITTER comes in annealed form on either clear float or low iron glass in various thicknesses. It can also be laminated.

Usage As a basis for changing spatial images, information displays and autocues

Functionality Anti-reflective coating, which reflects and transmits incident light waves in certain proportions

Special feature Available in two differentiations with regard to transmission and level of mirror

Technical specifications

BEAMSPLITTER	70 / 30%	50 / 50%
Light transmission	70%	50%
Light reflection (coated side)	30%	50%

Gallery

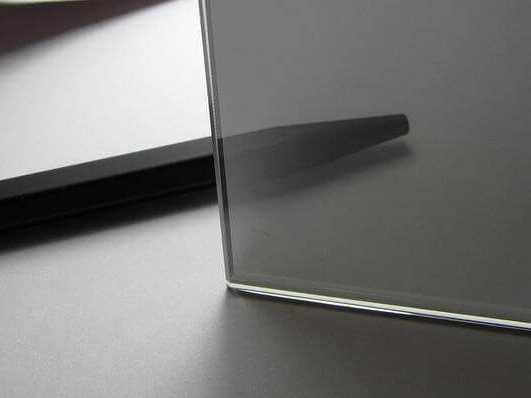

Special glass with one-way-mirror effect

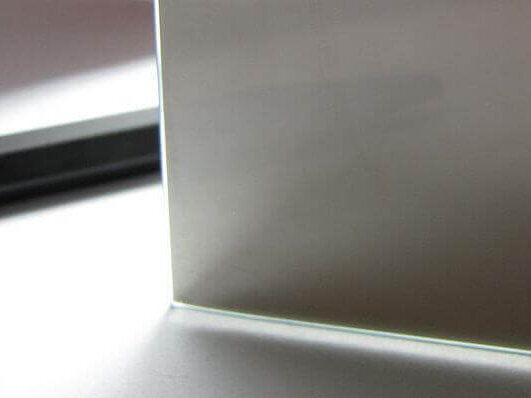

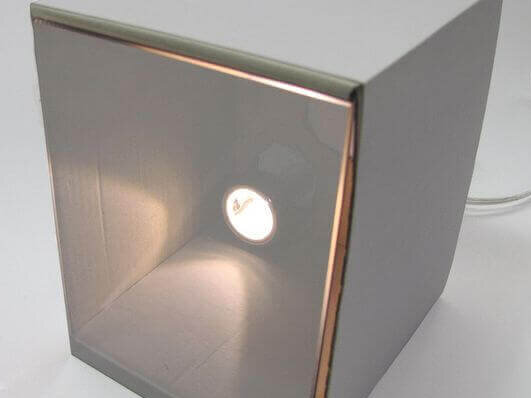

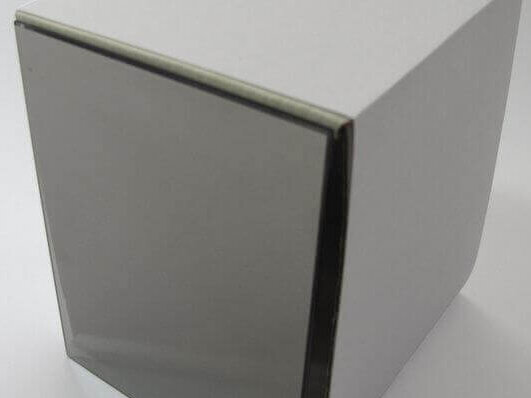

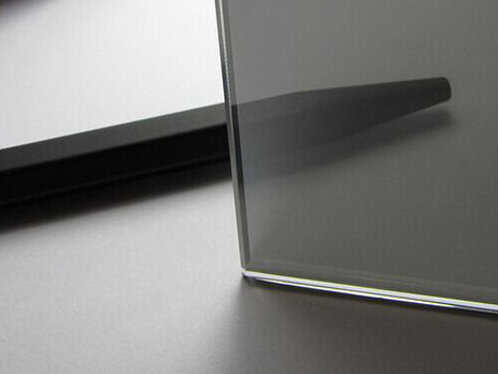

Protected from view, SPYMIRROR allows you to take on the role of an observer without being seen. This is made possible by a multilayer one way mirror coating.

SPYMIRROR is therefore preferentially used for observation purposes. In interior and exterior architecture SPYMIRROR can also be used to deliberately control viewing from inside as well as from outside. In order to achieve the desired effect, a difference in the illumination level is required.

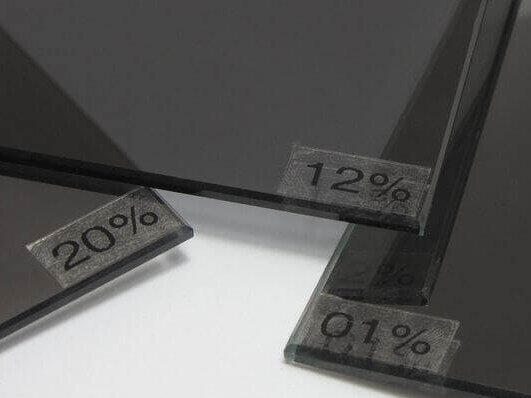

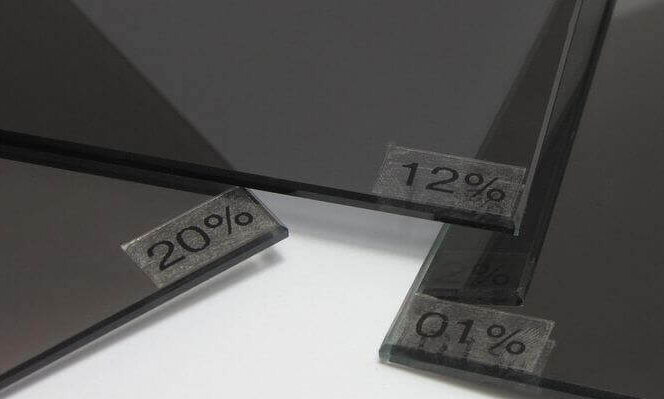

SPYMIRROR is available in 3 visible light transmission options either in annealed or laminated versions in various thicknesses on clear float or low iron glass.

SPYMIRROR CHROME is a temperable version of the one way mirror and also comes in 3 visible light transmission options. It can also be used in annealed or laminated versions and is available in sizes up to 6000x3210 mm on clear float or low iron glass.

Usage As a separating element with observation and mirror effect

Functionality One-sided mirror effect due to anti-reflective coating

Special feature Available in a range of degrees of light transmittance from 1 to 20 per cent (30 and 40 per cent on request)

Technical specifications

Light transmission	1%	12%	20%	3% CHROME	10% CHROME	20% CHROME
Light reflection (uncoated side)	43%	34%	24%	50%	39%	27%
Light reflection (coated side)	52%	46%	35%	59%	42%	29%
UV transmission	0%	5%	18%	3%	8%	17%
Reflection colour	Neutral grey	Neutral grey	Neutral grey	Neutral silver	Neutral silver	Neutral silver
